设计
| 冷却方式 |
Active |
| 插槽数量 |
2 |
| 格式要素 |
ATX |
性能
| Full HD |
Y |
| 集成电视调谐器 |
N |
| PhysX |
Y |
| NVIDIA® GameWorks VR 平台 |
Y |
| DirectX版本 |
12.0 |
| OpenGL版本 |
4.5 |
| NVIDIA® G-SYNC 技术配置 |
Y |
处理器
| 处理器频率 |
1531 MHz |
| FireStream |
N |
| 处理器提高时钟速度 |
1721 MHz |
| 视频卡最大显示 |
4 |
| 图形处理器系列 |
NVIDIA |
能量控制
| 最低系统供电 |
500 W |
| 补充电源连接器 |
1x 8-pin |
内存参数
| 内存时钟速度 |
8008 MHz |
| 独立显卡适配器內存 |
8 GB |
| 图形适配器内存类型 |
GDDR5 |
| 数据宽度 |
256 bit |
端口 & 界面
| DVI-D接口数量 |
1 |
| 接口类型 |
PCI Express x16 3.0 |
| HDMI端口数量 |
1 |
| DisplayPort 数量 |
3 |
另外
| 双dvi（互应式数字视频） |
Y |
| 图形处理器 |
GeForce GTX 1070 |

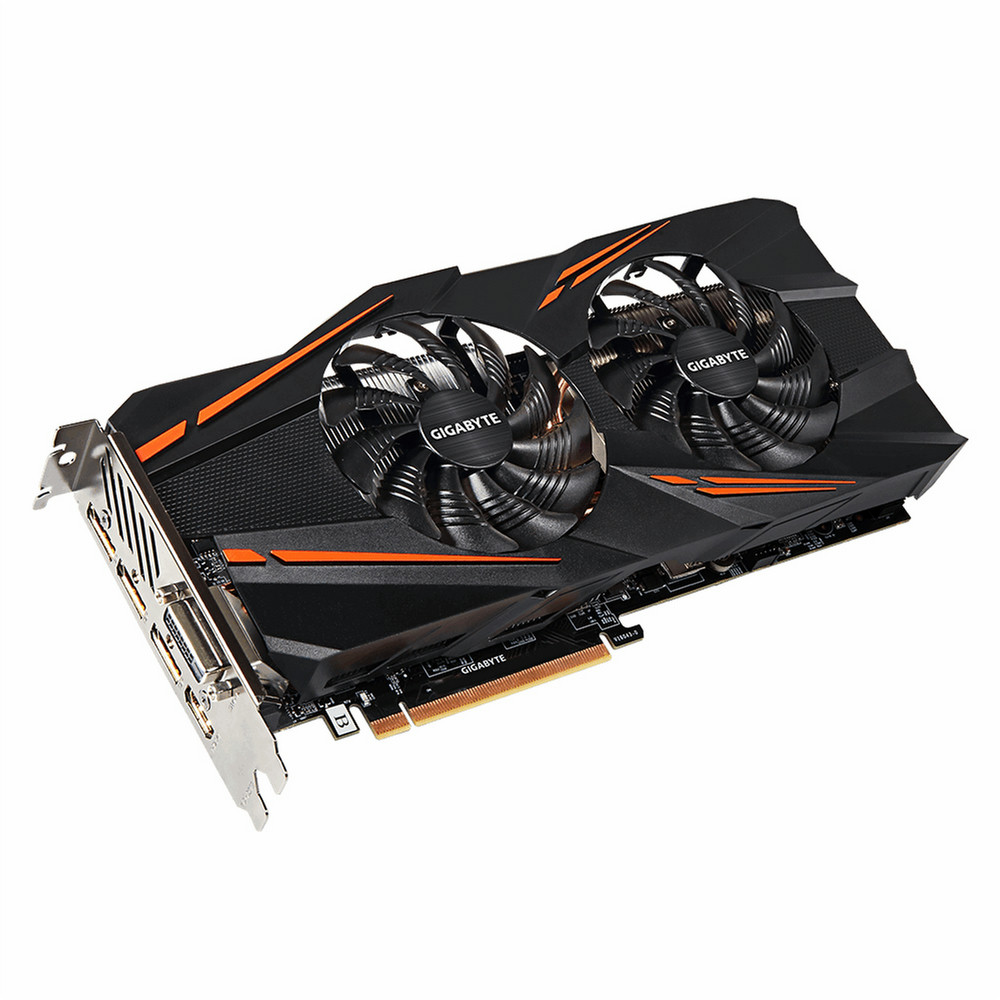

1531/1721 MHz, 8008 MHz, 8GB GDDR5 256bit, PCI-E 3.0 x 16, DVI-D, HDMI 2.0b, 3x Display Port 1.4, 131 x 280 x 37 mm, ATX
<b>WINDFORCE 2X Cooling System</b>
The WINDFORCE 2X cooling system features two 90mm fans, 2 pure copper composite heat-pipes, unique blade fan design, heat pipes direct touch technology together delivering an effective heat dissipation capacity for higher performance at lower temperatures.
<b>WINDFORCE Cooling System- Fans</b>
<b>Unique Blade Fan Design</b>
The airflow is spilt by the triangle fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the air flow by 23% over traditional fans.
<b>3D Active Fan</b>
The 3D Active Fan provides semi-passive cooling, the fans will remain off when the GPU is under a set loading or temperature for low power gaming. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.
<b>WINDFORCE 2X Cooling System- Heat Pipes</b>
<b>Composite heat-pipes</b>
The composite heat-pipes combines both thermal conductivity and phase transition for efficiently managing the transfer of heat between two solid interfaces which increases 29% of cooling capacity.
<b>Heat Pipe Direct Touch</b>
The pure copper heat pipes are shaped to maximize the direct contact area to the GPU.
<b>Performance</b>
<b>One-click Super overclocking</b>
With a simple click on XTREME Engine utility, gamers can easily tune the card to meet their various gaming requirements without any overclocking knowledge, while saving the hassle of manual adjustment.
<b>Durability</b>
<b>Ultra Durable Components</b>
Engineered with the highest-grade chokes and capacitors, this graphic card delivers outstanding performance and durable system lifespan.
<b>Built for OverClocking with 6+2 power phases</b>
Compared to founders edition, the 6+2 power phases on the card make the MOSFET working at a lower temperature and provide more stable voltage output.
<b>Intuitive XTREME Engine Utility</b>
<b>Xtreme Engine</b>
Adjust clock speeds, voltage, fan performance, power target can be monitored and tuned in real-time according to your own preference through this intuitive interface.
