端口 & 界面
| 接口类型 |
PCI Express 3.0 |
| HDMI端口数量 |
1 |
| DVI-I接口数量 |
1 |
| DVI-D接口数量 |
1 |
| DisplayPort 数量 |
1 |
内存参数
| 独立显卡适配器內存 |
4 GB |
| 内存时钟速度 |
7010 MHz |
| 图形适配器内存类型 |
GDDR5 |
| 数据宽度 |
128 bit |
处理器
| 最大模拟分辨率 |
2048 x 1536 pixels |
| 处理器频率 |
1216 MHz |
| 处理器提高时钟速度 |
1279 MHz |
| 最大数字分辨率 |
4096 x 2160 pixels |
| 图形处理器系列 |
NVIDIA |
性能
| Full HD |
Y |
| 集成电视调谐器 |
N |
| PhysX |
N |
| DirectX版本 |
12.0 |
| OpenGL版本 |
4.4 |
能量控制
| 最低系统供电 |
400 W |
| 补充电源连接器 |
1x 6-pin |
另外
| 双dvi（互应式数字视频） |
Y |
| 图形处理器 |
GeForce GTX 960 |

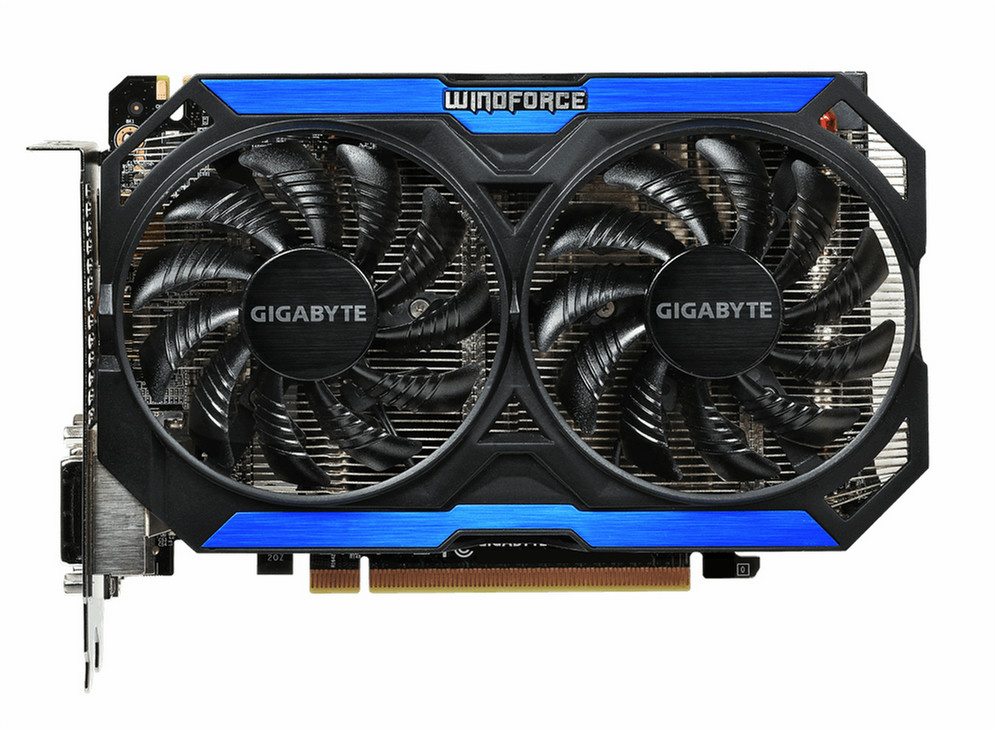

GeForce GTX 960, 4 GB GDDR5, 128 bit, PCI-E 3.0, DVI-I, DVI-D, HDMI, Display Port
<b>WINDFORCE 2X cooling system</b>
GIGABYTE introduces WINDFORCE, the latest cooling technology that differentiates the brand’s graphics cards from the rest. GIGABYTE understands that a fan is crucial to the graphics card, so only the fan with the most efficiency is selected for WINDFORCE.
<b>Unique Blade Fan Design</b>
The airflow is spilt through the triangle design at the fan edge, and is guided smoothly through the fan by special 3D stripe curve design. At the same time, it effectively enhanced the cooling capacity while reducing air turbulence.
<b>Heat Pipe Direct Touch</b>
Equipped with pure copper heat pipe direct touch (HDT) technology, delivering superior cooling capacity and heat transfer efficiency at an extremely low noise level.
<b>Flex Display technology</b>
GIGABYTE Flex display technology(patent-pending) can automatically detect any connected monitors and achieve multi-display gaming up to 4 monitors at the same time by using various output groups. Users could enjoy the best gaming experience in ultra HD resolution with extended flexibility in arranging monitor configurations and making future system upgrade extremely easy.
<b>OC GURU ll</b>
Brand-new intuitive user interface helps you easily modify important settings and directly update driver and BIOS. Clock speeds, voltage, fan performance, and OSD setting can be monitored and tuned in real-time according to your own preference.
