背板输出端口
| USB 3.0（第 1代3.1）Type-A 端口数量 |
2 |
| VGA（D-SUB）端口数量 |
1 |
| 串口数量 |
1 |
存储控制器
| RAID支持 |
Y |
| 硬盘接口 |
Serial ATA III |
内存参数
| 支持 LRDIMM 模块容量 |
64GB |
| 支持RDIMM模块的容量 |
32GB |
| 错误更正代码 |
Y |
| DIMM插槽数量 |
8 |
| 支持的内存类型 |
DDR4-SDRAM |
| 内存电压 |
1.2 V |
内置输入/输出系统
| 串行端口接头连接器 |
1 |
| 机箱防盗接口 |
Y |
| CPU风扇接口 |
Y |
| PS电源接口 （8针） |
Y |
| SATA III连接器数量 |
10 |
| TPM（可信任安全平台模组）接口 |
Y |
| 风扇电源接头 |
Y |
| ATX电源接头 |
Y |
扩展槽
| PCI Express X 4（Gen 2.x）插槽 |
1 |
| PCI Express x1（Gen 2.x）插槽 |
1 |
| PCI Express X 8（Gen 3.x）插槽 |
3 |
另外
| 主板晶片 |
Intel C612 |
| 以太网连接器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
3 |

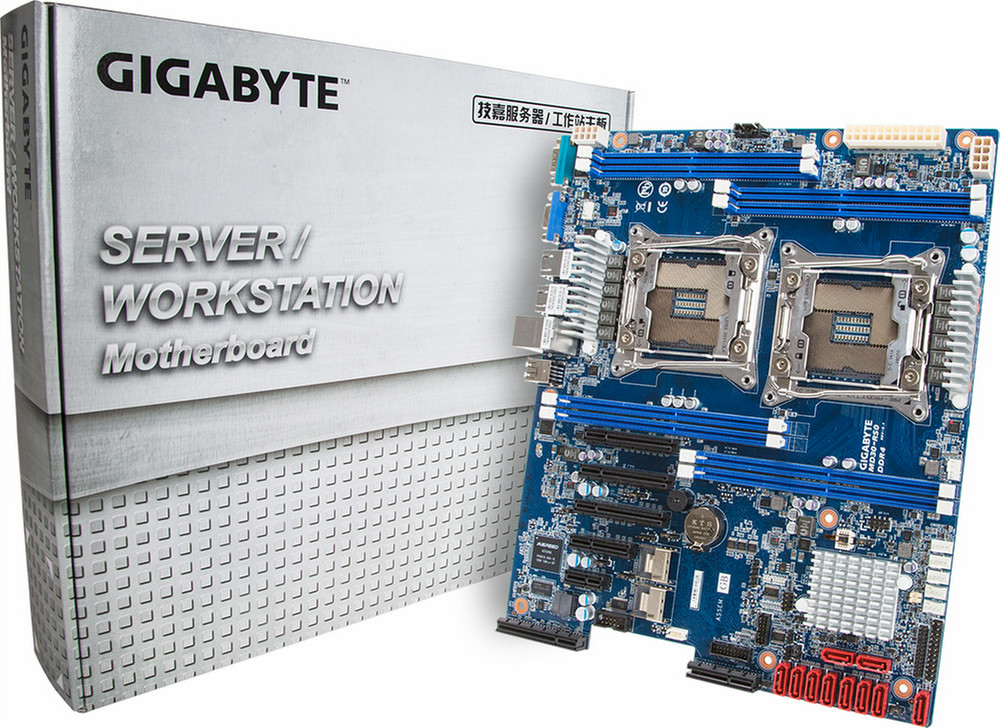

ATX, 2 x LGA 2011-3, Intel C612, 8 x DIMM slots, 2 x GbE LAN ports, Aspeed AST2400
<b>INTEL XEON E5-I 600/2600 V</b>
<b>PROCESSOR FAMILIES</b>
Based on the Haswell microarchitecture, these new Intel processor families
bring a whoe new set of performance boosting features. In addition to the
usual boost in frequencies and core numbers, the Intel xeon E5-16o0!2600
V3 families are the first in the industry to support the brand new DDR4
memory technology.
Moreover, these new processors include encryption performance overhead
reduction features, and technologies improving nn time and migration vM
integrity.
<b>DDR4 SUPPORT</b>
<b>NEXT IEEN MEMORY</b>
The Intel Xeon E5-1 600/2600 V3 families are the first generation of processors to
support exclusively the new DDR4 technology on the market, which brings:
+ 50% Bandwitdh Performance
- 35% Power Consumption @ 2DPC
- 50% Power consumption @ 3DPc
<b>MEMORY FREQUENCY</b>
<b>ET THE PERFORMAnCE EDGE</b>
On the previous server platforms from lntel, the maximum supported memory frequency has always been automatically downgraded by design when
more DIMMs were being added on a server motherboard. As this trade-off between performance and capacity represents a dilemma to many memor
ry-hungry server applications, GIGABYTE offers a unique solution Aul our mothetboards based on the LGA 2011-3 socket support by default a maxm
mum frequency of 2133 MHZ ifl any memory configuration
<b>ADD—ON SAS CARD</b>
<b>STORAGE FLEXIBILITY</b>
In addition to its ten SATA III 6Gb/s ports, the MD30-RSO has eight SAS
6Gb/s ports that can be activated with the addition of our proprietary
CRA22O-8 add-on RAID card
<b>EASY BIOS UPDATE</b>
Because updating the version of a BIOS can be a troublesome experience, GiGABYTE has developed this integrated function (no utility to install)
that lets you update the BIOs of your motherboard(s):
- without having to install CPUs, memory, drives, operating system, etc.
- without having to power on the system (but a power supply must be connected)
- One board at a time via our IPMl 2.0 web interface
- Multiple boards simultaneously via command line
<b>IPMI 2.0 WEB INTERFACE</b>
<b>REMOTE BOARD MANAIeEMENT?</b>
This motherboard has an onboard controller providing comprehensive remote
board monitoring and management features, such as:
- Remote Boot & Reset
- Remote Image Mounting
- Full Control Over Network, Users, Services, Etc.
- complete System Monitoring & Diagnostics
<b>ALL IR POWER DESIGN?</b>
Our boards CPU and memory power delivery is ensured by industry-leading
IR Digital PwM and IR PowlRstage IC controllers These components guara
aneee a super stable operating environment and allow the processors and the
memory to deliver their maximum performance.
<b>OS—CON CAPACITORS</b>
With a service life of a minimum of 5o’000 hours, our boards are built with
ultra long lasting components for the hgghest reliability possible.
<b>HiGH END FERRITE CORE CHOKEC</b>
The top quality choices we install on our boards also contflbute to an ultra
stable power delivery to the cPu and the memory.
