技术细节
直流电压范围 |
0.01 - 600 V |
背光 |
Y |
测量参数类别 |
CAT II 500V, CAT III 300V |
DC 0.1mV - 600V, 10A/1000V, 16MBit

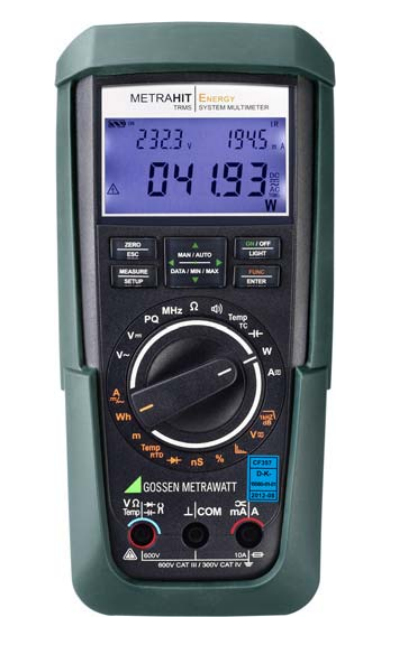

High-End Digital Multimeter with Power and Energy Measurement
The new, professional METRAHIT ENERGY multimeter is exceeding all previous performance limits.
Thanks to simultaneous TRMS current and voltage measurement (AC, AC+DC and DC) with a resolution of 60,000 digits, all important power quantities can be precisely acquired.
High-end, handheld, digital multimeter including
- RMS measurement with the following and more: V AC TRMS, V AC+DC TRMS 100 kHz with bandwidth, V DC, dB, Hz (V), Hz (A), Ω, μF, V diode, °C / F (TC / RTD)
- Power measurement (W, VAr, VA, PF): active, reactive and apparent power with extreme values, power factor
- Energy measurement (Wh, VArh, VAh) active, reactive and apparent energy, mean power value with adjustable observation period and maximum value
- Mains quality analysis: recording of over and undervoltage, dips, swells, voltage peaks and transients in 0, 50 and 60 Hz systems
- Harmonic analysis: RMS values and distortion components up to the 15th harmonic at 16.7, 50, 60 and 400 Hz
Special measuring functions:
- Crest factor (CF), conductivity (nS), low impedance (RSL), duty cycle (%), cable length (km)
- Triple display, display illumination can be activated for difficult lighting conditions
- Resolution: 60,000 digits (4 6/7 place)
- 1 kHz / -3 dB low-pass filter can be activated
- Direct current measurement from 10 nA to 10 A, 16 A intermittently,
- current measurement with current clamp transformers and sensors, transformation ratio is taken into account at the display
- Measurement data memory for up to 300,000 measured values
- Instrument is fully remote controllable without activating the rotary switch or changing current sockets
