能量控制
功耗(最大) |
13.8 W |
输入电流 |
1 A |
支持以太网(PoE) |
Y |
输入电压 |
24 V |
性能
最大户外范围 |
175 m |
网上管理 |
Y |
重启按钮 |
Y |
支持服务质量(QoS) |
Y |
频段 |
2.4 - 2.4835, 5.15 - 5.25, 5.725 - 5.85 GHz |
用户数量 |
250 user(s) |
Wi-Fi 多媒体 (WMM)/(WME) |
Y |
5 GHz |
Y |
发射功率 |
26 dBmW |
VLAN支持 |
Y |
接收机灵敏度 |
2.4G: 802.11b:-92dBm@11Mbps; 802.11g: -76dBm@54Mbps; 802.11n 20MHz:-73dBm@MCS7; 802.11n 40MHz:-70dBm@MCS7\n5G: 802.11a:-94dBm@6Mbps; 801.11a:-77dBm@54Mbps; 802.11ac 20MHz: -69dBm@MCS8; 802.11ac HT40:-65dBm@MCS9; 802.11ac 80MHz:-61dBm@MCS9 |
以太网的数据传输率 |
10, 100, 1000 Mbit/s |
2.4 GHz |
Y |
天线
天线增益水平(最大值) |
3 dBi |
集成天线 |
Y |
天线数量 |
6 |
另外
以太网路(RJ-45)连接接口数量 |
2 |
数据传输率(最大) |
1750 Mbit/s |
802.11 a/b/g/n/ac, 3x 2.4 GHz, 3x 5 GHz, QoS, 16 SSID, 2x RJ-45 10/100/1000 Base-T, PoE+, 205.3 x 205.3 x 45.9 mm, 540 g

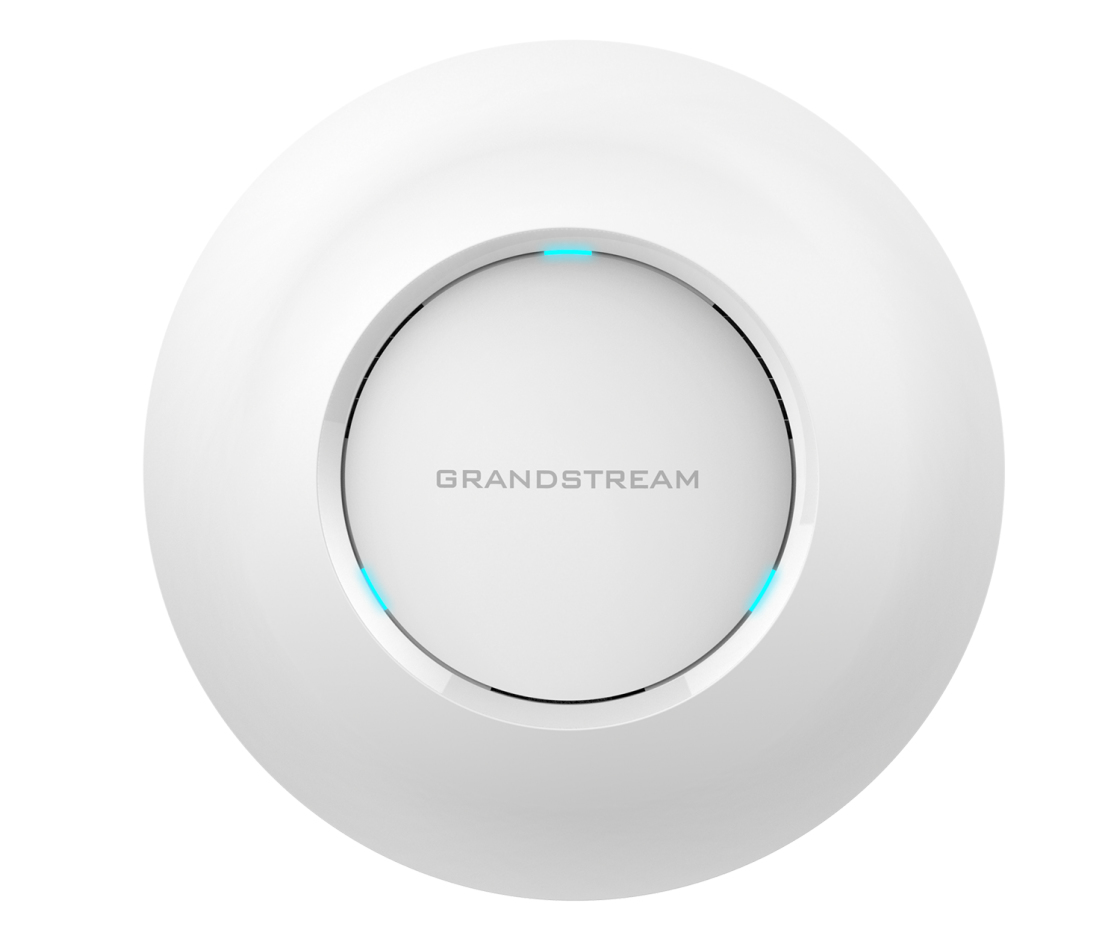

The GWN7610 is a high-performance 802.11ac wireless access point for small to medium sized businesses, multiple floor offices, commercial locations and branch offices. It offers dual-band 3x3:3 MIMO technology and a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range. To ensure easy installation and management, the GWN7610 uses a controller-less distributed network management design in which the controller is embedded within the product’s web user interface. This allows each access point to manage a network of up to 50 GWN7610s independently without needing seperate controller hardware/software and without a single point-of-failure. This wireless access point can be paired with any third party routers as well as Grandstream GWN series routers. With support for advanced QoS, low-latency real-time applications, 250+ client devices per AP and dual Gigabit network ports with PoE/PoE+, the GWN7610 is an ideal wireless access point for large and small wireless network deployments.
- Support for up to 16 SSIDs per radio and up to 250+ concurrent WiFi clients
- Dual-band 3x3:3 MIMO technology and a sophisticated antenna design for maximum network throughput of up to 1.75Gbps and expanded coverage range of up to 175 meters
- Dual Gigabit ports with support for PoE/PoE+, USB port for future applications such as location based service and other IoT (Internet of Things) applications
- User friendly built-in provisioning controller (via Web interface) allows any GWN7610 to auto discover, auto-provision and manage networks of up to 50 GWN7610s without requiring seperate controller hardware/software and without a single point of failure
- Offers high-end security features that are not available on most 3rd party WiFi APs, including unique security certificate per device using SHA256 encryption and strong random default passwords per device
- Advanced QoS to ensure real-time performance of low-latency applications
- Efficient power saving through self power adaptation upon auto detection of PoE or PoE+ network
