能量控制
| 电源转换器输出电流 |
1.5 A |
| 交流电（AC）输入频率 |
50/60 Hz |
| 交流电（AC）输入电压 |
100-240 V |
| 电源转换器输出电压 |
12 V |
产品特点
| 声音解码 |
G.711, G.722, G.723.1, G.726, G.729A, G.729B, iLBC |
| SIP中继 |
Y |
| LDAP接口 |
Y |
| 支持服务质量（QoS） |
Y |
| 液晶显示器指示灯 |
Y |
| 用户数量 |
500 user(s) |
| 产品类型 |
IP PBX (private & packet-switched) system |
端口 & 界面
| 外部交换局（FXO）端口数量 |
4 |
| USB2.0端口的数量 |
1 |
| 通过以太网（PoE）供电端口数量 |
2 |
联网
| 网络标准 |
IEEE 802.3at |
| 支持网络协议 |
TCP/UDP/IP, RTP/RTCP, ICMP, ARP, DNS, DDNS, DHCP, NTP, TFTP, SSH, HTTP/HTTPS, PPPoE, SIP (RFC3261), STUN, SRTP, TLS, LDAP |
环境条件
| 运行湿度范围(H-H) |
10 - 90% |
| 储存温度范围 (T-T) |
-10 - 60 °C |
| 储存相对湿度范围（H - H） |
10 - 90% |
重量和尺寸
| 深度 |
155 mm |
| 重量 |
510 g |
| 宽度 |
226 mm |
| 高度 |
34.5 mm |
另外
| 产品色彩 |
Black |
| 呼叫能力 |
Y |
| 以太网连接器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
2 |
| 运行温度范围（T - T） |
0 - 40 °C |
4 PSTN FXO, 2 FXS, 500 U Max, PoE, USB, SD, 5-level IVR, SRTP, TLS, HTTPS, H.264, H.263, H.263+
This IP PBX series allows businesses to unify multiple communication technologies, such as voice, video calling, video conferencing, video surveillance, data tools, mobility options and facility access management onto one common network that can be managed and/or accessed remotely.

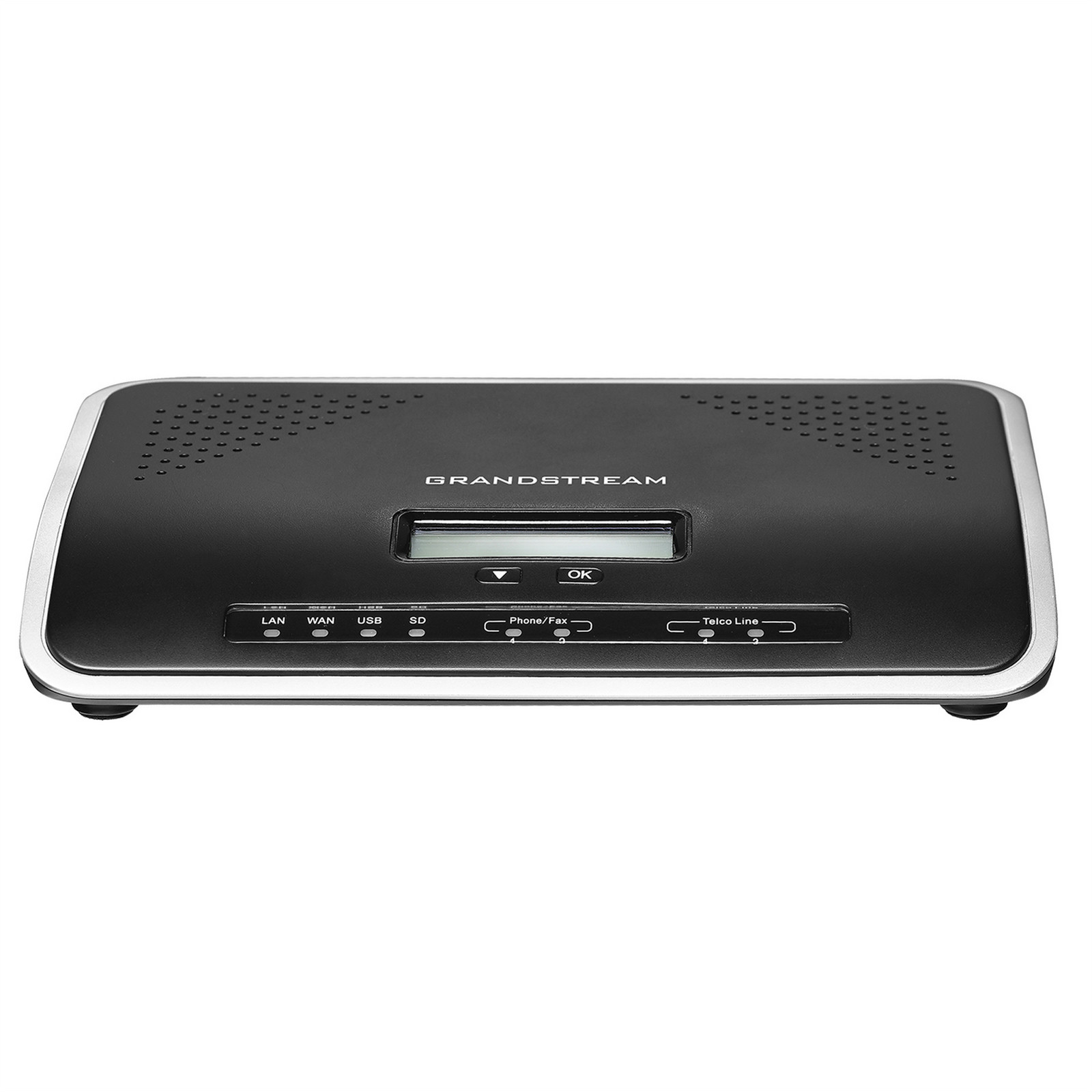

Designed to provide a centralized solution for the communication needs of businesses, the UCM6200 series IP PBX appliance combines enterprise-grade voice, video, data, and mobility features in an easy-to-manage solution. This IP PBX series allows businesses to unify multiple communication technologies, such as voice, video calling, video conferencing, video surveillance, data tools, mobility options and facility access management onto one common network that can be managed and/or accessed remotely. The secure and reliable UCM6200 series delivers enterprise-grade features without any licensing fees, costs-per-feature or recurring fees.
The same industry-leading platform that we designed for the UCM6100 series, which continues to be enhanced month by month with more and more features and functionalities, will be extended to the UCM6200 series. Looking for a more powerful upgrade? We have redesigned our 8 FXO port model, the UCM6208, to offer the ability to support more users and more concurrent calls, as it supports up to 800 users and up to 100 concurrent calls.
