Hama Lypsi video switch

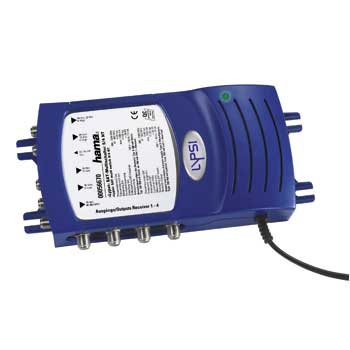

SAT Multi Switch 5/4 NT "Lypsi" - For connection of Twin- or one Quad-LNB
- With intelligent switching power supply and supply load indicator to LNBs
- Supply load indicators of power supply unit:
Type 0-350 mA(green)
Type 350-950 mA (yellow)
from 950 mA on (red) = Overload
- Current to LNBs (DC-power): max. 1200 mA
- LNBs powered by multi switch
- Inputs: 4x SAT, 1x terrestrial
- Outputs: 4
- Frequency range/attenuation:
SAT = 950 - 2300 MHz / 4 dB typ.
Terrestrial = 47 - 862 MHz / 17 dB typ.
- Decoupling SAT-inputs: >= 30 dB
- V/H: 14 V/18 V and 22-KHz-switching signal
- Integrated switching power supply unit: 18 V/1,2 A
- Network voltage: 230 V~/50 Hz/max. 27 VA
