端口 & 界面
| 超级视频输出 |
1 |
| HDCP |
Y |
| 音频（左、右声道）输出 |
1 |
| 数字音频光学输出 |
1 |
| 复合视频输出 |
1 |
| 分量视频(YPbPr/YCbCr)输出 |
1 |
| HDMI端口数量 |
1 |
| DC-IN插口 |
Y |
其他功能
| 数据传输速度 |
100 Mbit/s |
| 支持数据传输率 |
10/100 Mbit/s |
联网
| 网路功能 |
Fast Ethernet |
| 无线局域网连接 |
N |
文件格式
| 支持的视频格式 |
BMP, GIF, JPG, PNG |
另外
| 以太网路(RJ-45)连接接口数量 |
1 |
| 连接方式 |
Wired |
| 以太网连接器 |
Y |

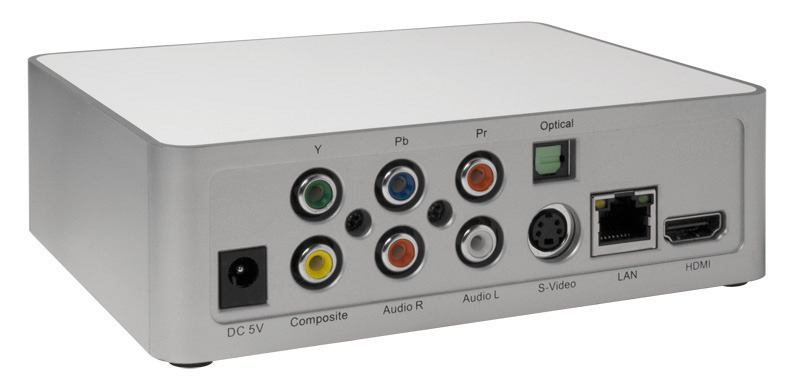

NTSC/PAL, HDMI, S-Video, Component, Composite, USB, Fast Ethernet
MediaMVP-HD is installed at your TV set and plays digital media (digital music, digital videos and digital pictures) from your PC or a USB thumb drive onto the TV set.
When the digital content is on the PC, MediaMVP-HD connects to your PC over your home Ethernet (wired) network. You can also put digital media on a USB thumb drive, plug the USB thumb drive into the MediaMVP-HD and then play the content onto your HD TV set.
MediaMVP-HD plays digital audio (MP3 music), high definition digital video (MPEG-2 as recorded by the WinTV-PVR or WinTV-HVR series of Hauppauge TV tuners, plus H.264 as recorded by the Hauppauge HD PVR and DivX) and digital pictures (JPEG, PNG, BMP and GIF).
<b>Full function remote control, with audio adjustment</b>
MediaMVP-HD comes with a full function remote control, with FastSkip buttons, a complete set of video control buttons (Skip forward, back, fast forward, pause, stop, etc.). And with the audio volume adjustments, you won't need your TV remote control just to adjust the audio.
Play WinTV and HD PVR recordings on your HD TV set
MediaMVP-HD can play all recordings which can be made with a Hauppauge WinTV-PVR, WinTV-HVR or HD PVR. The video formats which can be played by the MediaMVP-HD include MPEG-2 and H.264, both standard definition and high definition (up to 1080p). You can also play standard and high definition Divx and standard definition Windows Media files.
<b>USB thumb drives can be a source for media, too</b>
In addition to connecting to a PC to play digital media, MediaMVP-HD also has a USB port where you can plug in a USB thumb drive and play digital media. If you have a external USB hard drive, you might need to use a powered USB hub since the USB port on the MediaMVP-HD is designed for thumb drives.
<b>Access PC media with shared folders or through uPnP</b>
There are two ways the MediaMVP-HD can access media on a PC: you can set up Shared Folders on your PC, or you can use Universal Plug and Play (called ‘uPnP’) to access media folders on your PC. MediaMVP-HD connects to local area networks via its built-in Ethernet 10/100Mbps connection. The PC where your media files are located needs to be on the same network node as the MediaMVP. In general, if you have the PC and the MediaMVPs connected to the same network hub, Access Point or router, this requirement is satisfied. Up to 12 MediaMVP-HDs can be connected on a network. This means you can have a MediaMVP connected to the TV in your bedroom, one to the TV in the living room, one in the den, etc. The only limitation is that all the MediaMVPs need to be on the same network segment as the PC is located.
