276mm, 5.44kg, VESA 75x75
Product Details:

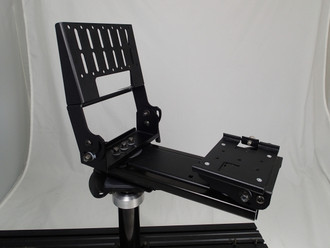

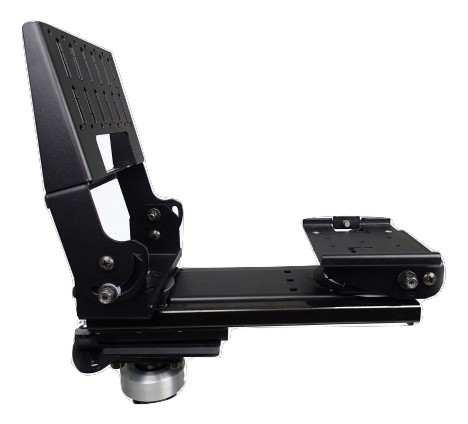

Pre-assembled package includes: C-HDM-305 (motion device), C-HDM-402 (heavy duty safety lock assembly), C-MD-204 (low profile tilt swivel motion device) and C-UMM-101 (universal monitor mount)
C-KBM-1XX keyboard adaptor and C-MM-2XX / C-MM-3XX monitor adaptors must be ordered separately
The C-MM-201 and C-MM-301 adaptors may still be required for some VESA 75 equipment depending on cable or mount hole locations
See the "monitor mount configurator" under the "build my solution" tab above for more information on how to order a complete system
Mounts directly to C-HDM-200 Series poles
Monitor mount includes VESA 75 hole pattern for many monitors or devices
Tilt swivel includes VESA 75 and amps hole patterns
Space saving solution allows additional equipment to be mounted in console
Monitor has 90° side to side swivel for improved viewing angle
Tilt swivel has 45° tilt and 90° swivel for improved ergonomics
Main swing arm with 180° horizontal rotation provides ergonomic positioning
Quick-release handles for monitor and keyboard tilt control
Rotation securely locks into stowed position.
Slide out extension for keyboard of up to 6" (15.25 cm)
10.875" high ( to the top of the C-UMM-101 )
