产品特点
电缆标准 |
Cat6 |
电缆屏蔽层 |
U/UTP (UTP) |
布线技术 |
10/100/1000Base-T(X) |
输入阻抗 |
100 Ω |

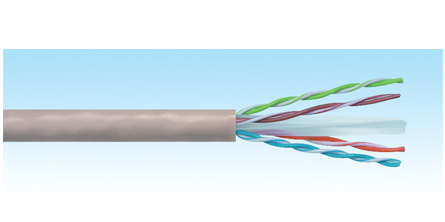

Cat6 U/UTP 100 Ohm Horizontal LAN Cables 500m Drum
HCS DataLink 250 cable series consists of 100 Ohm impedance, 4-pair and 8-pair U/UTP cables for horizontal installations in local area networks (LANs). All cables fully conform to and provide a substantial margin above all Category 6 requirements of ANSI/TIA-568-C.2 and IEC 61156-5.
- Testing every box or reel of cable prior to shipment - providing the highest degree of quality assurance.
- Exceptional material properties and cable design - providing a unique Century™ Lifetime Warranty.
- High ACR values - providing low BER (Bit-Error-Rate) in all applications.
- Extremely high pair-balance - providing excellent EMC (Electro Magnetic Compatibility), minimizing radiation and
- maximizing noise immunity.
- Revolutionary pair lay scheme - providing an extremely low delay skew.
- Co-extruded crisp and clear spiral color coding of wires - providing positive wire identification and ease of installation.
- Descending sequential meter mark - providing easy stock and left-over handling.
- Smooth and rigid jacket - proving fast and easy cable pulling and installation.
- Batch number printed every meter - providing fast retrieval of test results from data-base.
- A comprehensive product range - providing all state-of-the-art cable constructions.
- Large variety of packaging options - providing minimum scrap and left-over cable sections.
- Unique DoubleSafe™ Quality Assurance Program providing lowest rejection rate available.
