设计
| 侧窗 |
N |
| 格式要素 |
Midi-Tower |
| 类型 |
PC |
| 3.5" 托架数量 |
5 |
| 5.25" 托架数量 |
5 |
| 扩展插槽数 |
7 |
| 适用于 |
Gaming |
| 材料厚度 |
0.8 mm |
| 照明 |
Y |
端口 & 界面
| USB 3.0（第 1代3.1）Type-A 端口数量 |
2 |
冷却
| 安装的后部风扇 |
1x 120 mm |
| 前部风扇安装 |
1x 140 mm |
| 安装的顶部风扇 |
2x 120 mm |

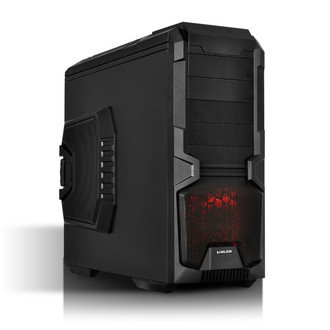

Renegade - ATX / MICRO ATX, 5x 3.5”, 5x 5.25”, 7x PCI/PCI-E, 2x USB2.0, 2x USB3.0, 0.8mm SECC

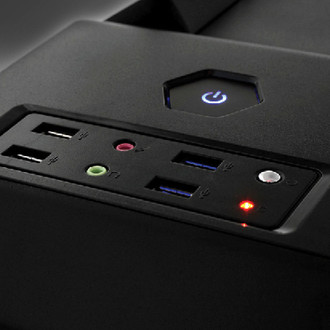

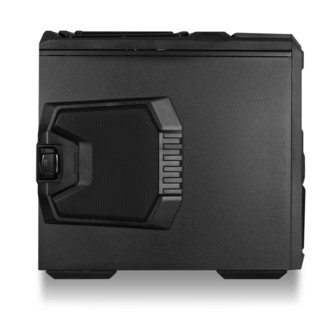

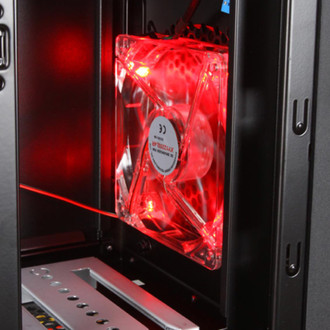

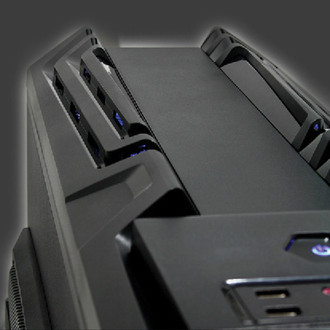

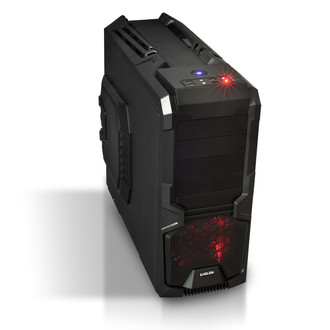

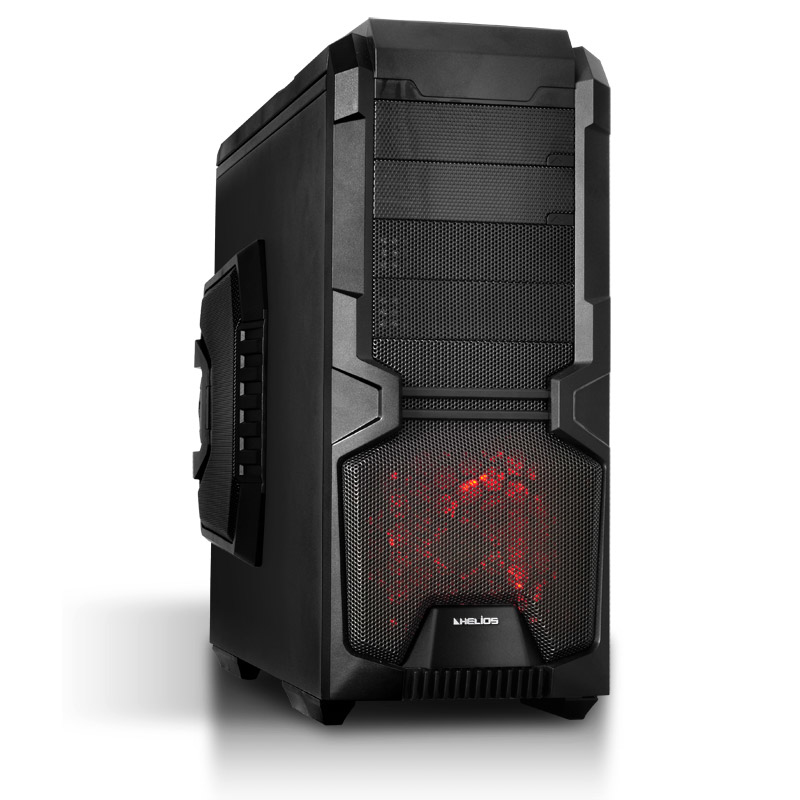

A very attractive look from the first sight : With the thickness of 0.8mm SECC material, the dimension of (D) 550.0×(W)245.0×(H)525.0mm, the weight of 11.1KG, especially the Cooling System – front 1*14cm blue LED fan, top 2*12cm fans, adding rear 1*12cm fan, total 3pcs fans are installed respectively. Plus 2xUSB2.0+2*USB3.0 HD AUDIO on top panel. Meanwhile, the nice top cover, side panel mesh, bottom dust cover, inner black, ODD mesh bay, all shows out the class!

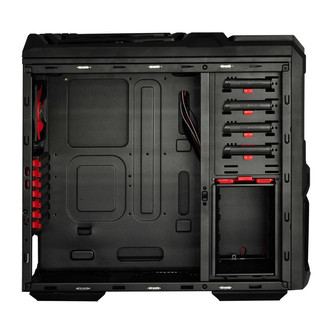

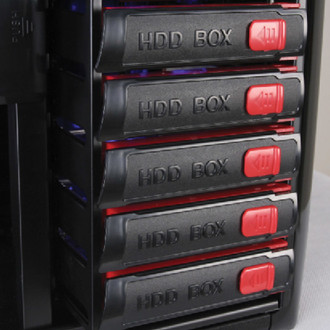

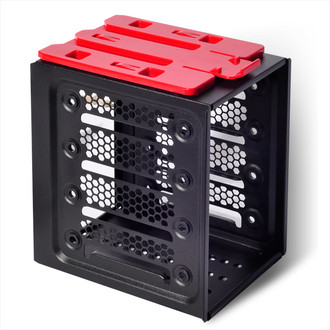

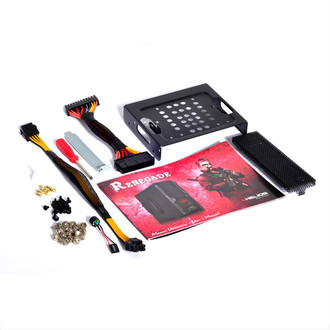

The installation would be an amazing journey to find out how convenient and how logical this case is designed. The 5pcs CD-ROM spaces are filled with screwless, to install CD-ROM, it only needs turn the button to open or lock well. It also has 5pcs HDD space, you only need use the screws to lock it. To install PCI devices, it's so easy that we only need to open and lock the simple plastic buckles. We also prepare the 24P and 8P cable for you once your PSU cable length is not enough.

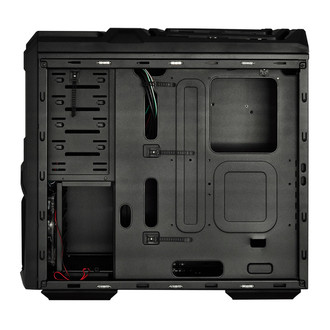

The details which shouldn't be ignored: The logical and nice Cables Organization makes the inside of case look neat.
One more good surprise for the gamers: This case is also designed to be available for EATX power supply, which can be installed next to the real panel on the bottom of case!
