超低音音箱
超重低音扬声器类型 |
Active subwoofer |
超重低音功率有效值 |
5 W |
重量和尺寸
超重低音扬声器尺寸(宽x深x高) |
149 x 180 x 239 mm |
卫星音箱尺寸(宽x深x高) |
65 x 68 x 235 mm |

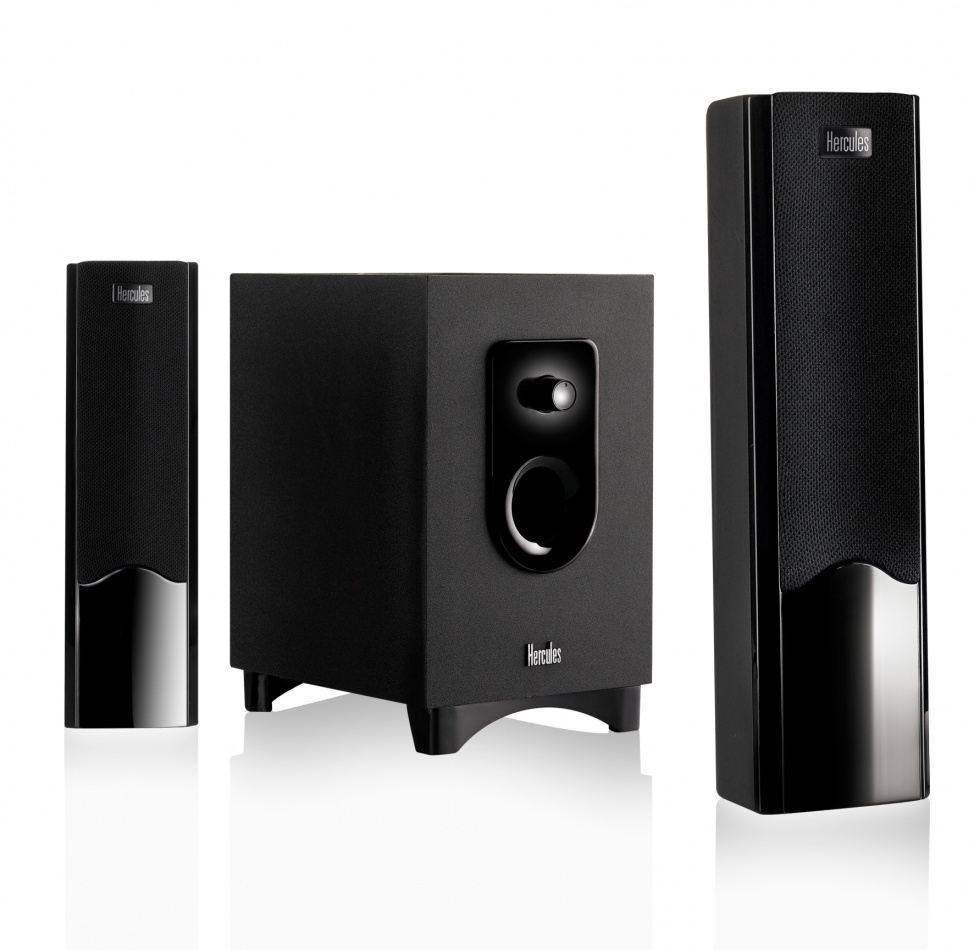

XPS 2.1 20 - 10W RMS (5W + 2 x 2.5W), RoHS, Gloss Black
- Exclusive design incorporating the maximum volume of air, giving the sound room to develop
- Total power: 10 watts RMS (5W + 2 x 2.5W). Peak power: 20 watts
- Speakers are magnetically shielded so as not to disturb your surroundings
- Wired remote control
- Headphone jack and secondary line input on the remote control
- Master volume control knob on the remote control
- Integrated power supply
- Black lacquered finish on front face
- Satellite dimensions: 23.5cm (height) x 6.5cm (width) x 6.8cm (depth)
- Wooden subwoofer dimensions: 23.9cm (height) x 14.9cm (width) x 18cm (depth)
- 1.8 meter cable to connect to audio source
- Product meets RoHS standards
<b>Technology</b>
<b>Speaker</b>
Unit reproducing an acoustic wave from an electrical signal which vibrates one or more membranes, the movements creating a sound wave.
<b>2.1</b>
System for transmitting sound over three channels, with 2 channels reproducing medium and high range frequencies and 1 channel reproducing bass frequencies.
<b>Satellite</b>
Satellite is the name given to a speaker which does not reproduce bass frequencies: this speaker is therefore the satellite to a subwoofer. In a X.1 kit (2.1, 4.1, 5.1 , 6.1 or 7.1), the digit before the point 1, i.e. the 2, 4, 5, 6 or 7, represents the number of satellites in the speaker kit.
<b>Subwoofer</b>
The subwoofer is a speaker which reproduces bass frequencies, and is often larger than other types of speakers as bass frequencies require larger membranes than is the case with high or medium frequencies. A single subwoofer is most often included in a speaker kit: as bass frequencies are transmitted all around the membrane (omnidirectionally) and not just in front of the membrane, a single subwoofer is sufficient to provide rich bass sound all across an area, as long as it is powerful enough. In a X.1 kit (2.1, 4.1, 5.1, 6.1 or 7.1), the digit after the period, i.e. the 1, signifies that 1 subwoofer is included.
<b>Watts RMS</b>
Power in Watts RMS represents the continuous electrical power delivered by an amplifier to speakers.
<b>Watts Peak Power</b>
Watts Peak Power represents the peak electrical power delivered by an amplifier to speakers.
<b>Headphone plug</b>
Stereo audio output allowing for the connection of stereo headphones. A headphone plug uses a connector in 3.5mm mini-jack format.
<b>Line input</b>
Analog audio input designed to receive an unamplified sound signal. There are 2 line levels: the general public line level, at -10dBv: this is the signal output level of a Hi-Fi component connected to an amplifier via a connector known as a line input. The professional line level, at +4dBu, is much more powerful, and is used to connect studio or public-address (PA) equipment.
<b>Magnetic shielding</b>
Magnetic shielding shields against the magnetic field generated by speakers, for example. If a speaker is touching a CRT screen (television or computer), magnetic shielding is necessary to avoid disturbing the display.
