端口 & 界面
| 安装SFP模块数量 |
4 |
| 基本交换 RJ-45 以太网端口数量 |
24 |
| 基本交换 RJ-45 以太网端口类型 |
Gigabit Ethernet (10/100/1000) |
| 以太网铜缆技术 |
100BASE-TX, 1000BASE-T, 10BASE-T |
| 控制台端口 |
RJ-45 |
数据传输
| 延时（1 Gbps） |
3.8 µs |
| 延时（10 Gbps） |
1.6 µs |
| 吞吐量 |
95.2 Mpps |
| MAC 地址表 |
32768 entries |
| 交换容量 |
128 Gbit/s |
管理功能
| 流量分类 |
Y |
| 支持服务质量（QoS） |
Y |
| 支持多重播放 |
Y |
| 交换层 |
L3 |
| 网上管理 |
Y |
性能
| 内置存储器 |
1024 MB |
| 内置处理器 |
Y |
| 可堆叠 |
Y |
| 处理器频率 |
1016 MHz |
| 内存类型 |
DDR3 SDRAM |
联网
| 流量控制支持 |
Y |
| 动态主机配置协议服务器 |
Y |
| 自动检测 |
Y |
| 10G支持 |
Y |
| VLAN支持 |
Y |
| IGMP侦听 |
Y |
| 自动 MDI / MDI - X 检测功能 |
Y |
| 速率限制 |
Y |
| 链路汇集 |
Y |
| IP路由 |
Y |
| 路由条目 |
10000 |
| 生成树协议 |
Y |
| 全双工传输 |
Y |
安全
| 存取控制清单(ACL) |
Y |
| SSH / SSL支持 |
Y |

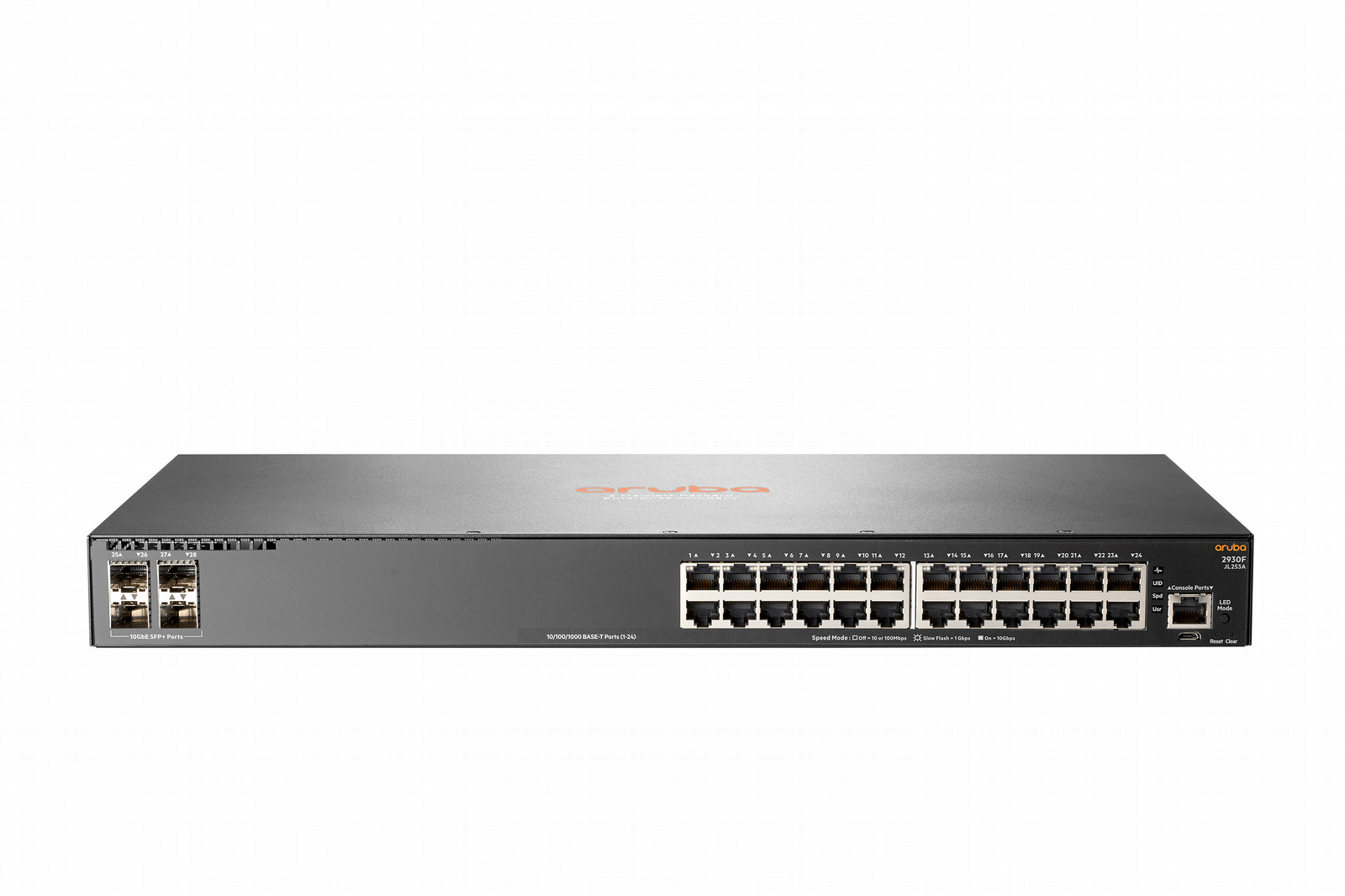

Aruba 2930F 24G 4SFP+ Switch
The Aruba 2930F Switch Series is designed for customer creating digital workplaces that are optimized for mobile users with an integrated wired and wireless approach. These basic Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager and Aruba AirWave and are ideal for enterprise edge, SMB and branch offices.
A powerful Aruba ProVision ASIC delivers performance and value supporting the latest SDN applications with future proof programmability. It supports 10GbE uplinks, PoE+, robust QoS, and RIP routing.
Features
High-Performance Access Layer Switches
- The Aruba 2930F Switch Series provides performance, security, and ease of use for enterprise edge, SMB, and branch office networks.
- Delivers a consistent wired/wireless user experience with unified management tools such as ClearPass Policy Manager and Airwave Network Management. Provides optimal configuration automatically when connected to Aruba access points for PoE priority, VLAN configuration, and rogue AP containment.
- Convenient built-in 1GbE or 10GbE uplinks and PoE+ models deliver right-size network access performance.
- Robust basic Layer 3 feature set includes static and RIP routing, ACLs, sFlow, IPv6 with no software licensing required.
- Designed with a powerful ProVision ASIC and support for OpenFlow, the Aruba 2930F is ready to take advantage of SDN applications such as HPE Network Visualizer, Optimizer, and Protector Software products.
Performance and Power at the Edge
- The Aruba 2930F Switch Series is designed with a powerful Aruba ProVision ASIC, to enable the mobile campus with SDN optimizations, low latency, increased packet buffering, and adaptive power consumption.
- Increase performance with selectable queue configurations and associated memory buffering that meets your specific network application requirements.
- Supports up to 370 W of internal PoE+ power for wireless access points, cameras and phones.
Security and Quality of Service You Can Rely on
- The Aruba 2930F Switch Series includes security and quality of services features to build a network that meets ever-changing corporate policies and compliances while protecting your data from both inside and outside attacks.
- Flexible authentication options include standards based security protocols such as 802.1X, MAC and Web Authentication, to enhance security and policy-driven application authentication.
- Powerful, multilevel-access security controls include source-port filtering, RADIUS/TACACS+, SSL, Port Security, and MAC address lockout.
Simplify with Integrated Wired/Wireless Management
- The Aruba 2930F Switch Series supports Aruba ClearPass Policy Manager for unified and consistent policy between wired and wireless users and simplifies implementation and management of guest login, user onboarding, network access, security, QoS, and other network policies.
- Supports Aruba Airwave Network Management software to provide common platform for Zero Touch Provisioning management, and monitoring for wired and wireless network devices.
- RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms and events.
- Out-of-band Ethernet management port keeps management traffic segmented from your network data traffic.
