性能
| 2.4 GHz |
Y |
| 频段 |
2.41 - 2.46, 5.18 - 5.83 GHz |
| 以太网的数据传输率 |
10, 100 Mbit/s |
端口 & 界面
| 布线技术 |
10BASE-T, 100BASE-TX |
协议
| 管理协议 |
SNMP v2c,v3 |
| 支持网络协议 |
DHCp, PEAP, PAP, CHAP, MS-CHAPv2 |
天线
| 天线增益水平（最大值） |
5.5 dBi |
| 天线接口类型 |
N |
其他功能
| 遵守工业标准 |
IEEE 802.3, IEEE 802.3af, IEEE 802.11a/b/g |
另外
| 数据传输率（最大） |
54 Mbit/s |
| 包括 AC 适配器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
1 |

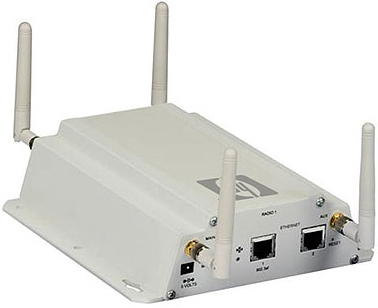

E-MSM320-R, 2 dBi, 2.4/5.5GHz, WPA, WPA2, AES, IEEE 802.11a/b/g, Fast Ethernet
HP offers intelligent single, dual and tri radio Access Points designed to provide reliable, easy-to-use wireless connectivity across the network. HP also offers integrated RF Security Sensors in some of their APs. All the HP E-series MSM Access Points and integrated RF Security Sensors operating are managed by any of the HP E-series MSM Controllers and the HP RF Manager for the RF Security Sensors. All the HP E-series Access Points can also work in autonomous mode. The HP E-series MSM Access Points require a single Power over Ethernet (PoE) cable drop and are IEEE802.3af compliant or can be powered directly via a power adaptor. HP has a full range of both indoor and outdoor E-series Access Points.
- IEEE 802.1p prioritization: delivers data to devices based on the priority and type of traffic. SpectraLink voice priority (SVP) support: prioritizes SpectraLink voice IP packets sent from a SpectraLink NetLink SVP server to SpectraLink wireless voice handsets to help ensure excellent voice quality. Wireless:
- L2/L3/L4 classification: IEEE 802.1p VLAN priority, SpectraLink SVP and DiffServ.
- Wi-Fi MultiMedia (WMM), IEEE 802.11e EDCF, and Service-Aware priority assigned by VSC.
- Maximum VoIP call capacity: 12 active calls on IEEE 802.11a/b/g/n. Network management: - Fully manageable using HP
- Auto-MDIX: automatically adjusts for straight-through or crossover cables on all 10/100 ports. IEEE 802.3af Power over Ethernet (PoE) support: simplifies deployment and dramatically reduces installation costs by helping to eliminate the time and cost involved in supplying local power at each access point location.
- Anywhere, anytime wireless coverage:
- Single, dual, and tri-radio IEEE 802.11a/b/g access points.
- Per-radio software-selectable configuration of frequency bands.
- Self-healing, self-optimizing local mesh extends network availability.
- Wi-Fi Alliance certified for interoperability with all 802.11a/b/g client devices.
- IEEE 802.3af PoE or external power cord on selected models . Interoperability: Wi-Fi Alliance certifications, including IEEE 802.11g Wi-Fi and WPA2 to help ensure multivendor interoperability. Virtual Service Communities (VSCs): - Up to 16 SSIDs, each with unique MAC addre.
- Choice of IEEE 802.11i, Wi-Fi Protected Access 2 (WPA2), or WPA: locks out unauthorized wireless access by authenticating users prior to granting network access; robust Advanced Encryption Standard (AES) or Temporal Key Integrity Protocol (TKIP) encryption secures the data integrity of wireless traffic. Local wireless bridge client traffic filtering: when enabled, prevents communication between wireless devices associated with the same access point. IEEE 802.1X: provides port-based user authentication with support for Extensible Authentication Protocol (EAP) MD5, TLS, TTLS, and PEAP with choic.
