性能
| 处理器频率 |
333 MHz |
| 散热 |
113 BTU/h |
其他功能
| 吞吐量 |
220 |
| Mobile network connection |
Y |
| 闪存 |
256 MB |
| 机架安装 |
Y |
以太网LAN特性
| 布线技术 |
10/100Base-T(X) |
| 以太网的数据传输率 |
10, 100 Mbit/s |
| 以太网LAN接口类型 |
Fast Ethernet |
| 全双工传输 |
Y |
无线局域网的特点
| Wi-Fi标准 |
IEEE 802.11n |
| 无线局域网类型 |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
安全
| 支持安全算法 |
128-bit AES, 192-bit AES, 256-bit AES, 3DES, DES, MD5 |
另外
| 以太网连接器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
2 |
2 x SIC, 1 x MIM, 2 x WAN, 220 Kpps, Wi-Fi, 4G LTE, RISC 333 MHz, 256 MB DDR SDRAM, 256 MB flash, 113 BTU/hr

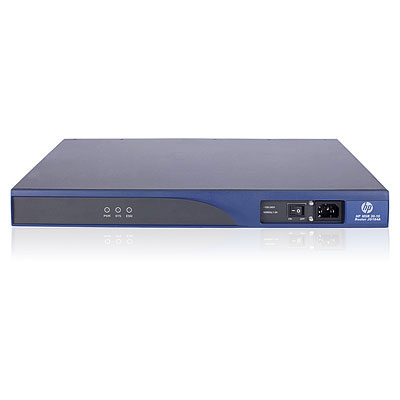

The HP MSR30 Router Series is a family of high-performance medium-to-large branch routers that deliver integrated routing, switching, security, wireless, and voice in a single box. With its integrated infrastructure and modular design, the MSR30 reduces complexity and simplifies your network while enabling faster time to service and enhanced performance.
The MSR30 increases flexibility and agility by delivering support for a wide range of virtualized applications on the Open Application Platform module. With 4G LTE and UC&C support, it offers dependable branch survivability and resiliency.
Features
Reduce Complexity and Simplify Your Network
The HP MSR30 Router Series simplifies your network through integrated routing, switching, wireless, encryption, VPN, firewall, voice and virtualized applications.
Reduces your TCO through open standards, power and space savings, and energy-efficient hardware.
Single pane of glass management with HP Intelligent Management Center makes administration easier.
Zero-touch deployment and Dynamic VPN reduce management complexity.
No additional licensing complexity or cost for advanced features.
Increased Flexibility and Agility Across Your Network
The HP MSR30 Router Series supports an Open Application Platform module for HP AllianceOne applications such as WAN acceleration and Microsoft Lync.
Fully modular platform and wide range of connectivity options enables the right design for your needs.
A rich host of modules for WAN, LAN, voice, and virtualized applications reduces costs and complexity.
Based on open standards for ease of network integration.
Enhanced Time to Service and Branch Performance
The HP MSR30 Router Series gives your medium-to-large branch offices high performance routing with up to 360 Kpps forwarding to meet bandwidth-intensive applications demands.
High density voice interfaces and embedded service modules provide enhanced integration and faster time to service.
Comprehensive feature set enables branch services that support your needs.
Integrated security eases the transition to the cloud.
Strengthen Medium-to-Large Branch Resiliency and Survivability
The HP MSR30 Router Series with 4GE LTE and 3G WAN access support enables service survivability.
Support for modules like the HP MSR Survivable Branch Communication Module (SBM) powered by Microsoft Lync enables realtime communications, even when the WAN is unavailable.
Advanced hardware architecture and FPGA modules increases the dependability of your network.
