处理器的特殊功能
| 增强型英特尔®SpeedStep动态节能技术 |
Y |
| 英特尔® FDI技术 |
N |
| 英特尔®VT-x的扩展页表（EPT） |
Y |
| 英特尔®vPro™ 技术 |
N |
| 英特尔®MID清晰视频技术 |
N |
| 英特尔® 我的WiFi技术 |
N |
| 英特尔® 增强暂停状态 |
Y |
| 英特尔®超线程技术 |
Y |
| 英特尔® 防盗技术 |
N |
| 英特尔®智能高速缓存 |
Y |
| 英特尔®直接输入/输出硬件辅助虚拟化技术 (Intel® VT-d) |
Y |
| 英特尔®Turbo Boost技术 |
Y |
| CPU配置（最大） |
1 |
| 英特尔® 双显示功能技术 |
N |
| 英特尔® 清晰视频技术 |
N |
| 英特尔®64 |
Y |
| 英特尔® 内线™ |
N |
| 英特尔®快速同步视频技术 |
N |
| Processor ARK ID |
42929 |
| 英特尔®虚拟化技术（VT -x） |
Y |
| 英特尔®可信执行技术 |
Y |
| 英特尔® Flex内存访问 |
N |
| 英特尔® 快速内存访问 |
N |
| 英特尔®快速存储技术 |
N |
| 英特尔®清晰视频高清技术 |
N |
| 英特尔®无线显示(WiDi)技术 |
N |
| 英特尔®基于需求开关 |
Y |
存储介质
| 硬盘接口 |
Serial ATA |
| RAID支持 |
Y |
| 最大存储容量 |
8 TB |
| 支持的硬盘数量 |
4 |
| 总存储容量 |
500 GB |
| 安装的硬盘驱动器的数量 |
2 |
| 硬盘容量 |
250 GB |
| 热插拔 |
N |
| 硬盘尺寸 |
3.5 " |
处理器
| 处理器支持最大内存 |
32 GB |
| 处理器频率 |
2.66 GHz |
| 步进 |
B1 |
| 处理器运行模式 |
64-bit |
| 可选用的嵌入式选项 |
Y |
| 核心的处理器数量 |
4 |
| 总线频率 |
20 |
| FSB奇偶校验 |
N |
| Number of Processing Die Transistors |
774 M |
| 处理器生产厂商 |
Intel |
| PCI Express配件 |
4x4, 2x8, 1x16 |
| 无冲突处理器 |
N |
| 物理地址扩展（PAE） |
Y |
| 处理器支持内存通道 |
Dual |
| 处理器支持内存带宽（最大值） |
21 GB/s |
| 处理器支持显存频率 |
1333, 1066, 800 MHz |
| 处理器高速缓存类型 |
Smart Cache |
| 处理器代码 |
SLBLD |
| 实体位址扩充（PAE） |
36 bit |
| 处理器封装尺寸 |
37.5 mm |
| PCI Express 通道数的最大值 |
1 |
| 热监测技术 |
N |
| 闲置状态 |
Y |
| 执行禁止位 |
Y |
| 处理器加速频率 |
3.2 GHz |
| 处理器高速缓存 |
8 MB |
| 处理器安装数量 |
1 |
| SMP（适用于表面安装的封装形式）处理器的最大数量 |
1 |
| 散热设计功耗 (TDP) |
95 W |
| 处理器光刻 |
45 nm |
| 总线类型 |
DMI |
| 处理器支持内存类型 |
DDR3-SDRAM |
| 支持指令集 |
SSE4.2 |
| 处理器支持 ECC 功能 |
Y |
| 外壳温度 |
72.7 °C |
扩展槽
| PCI Express插槽版本 |
2.0 |
| PCI Express × 4插槽 |
1 |
| PCI Express x8插槽 |
1 |
| PCI Express x16 插槽 |
1 |
端口 & 界面
| PS/2连接埠数量 |
1 |
| 串口数量 |
1 |
| VGA（D-SUB）端口数量 |
1 |
内存参数
| 最大内部存储 |
16 GB |
| 内存插槽数量 |
4 |
| 内置存储器 |
4 GB |
| 内存类型 |
DDR3-SDRAM |
| 内存时钟速度 |
1333 MHz |
环境条件
| 工作高度 |
0 - 3048 m |
| 非运行高度 |
0 - 9144 m |
另外
| 以太网连接器 |
Y |
| 系统总线 |
2.5 GT/s |
| Processing die size |
296 mm² |
| 主板晶片 |
Intel 3420 |
| InTru™3D技术 |
N |
| 以太网路(RJ-45)连接接口数量 |
1 |
| 英特尔®AES新指令 |
N |

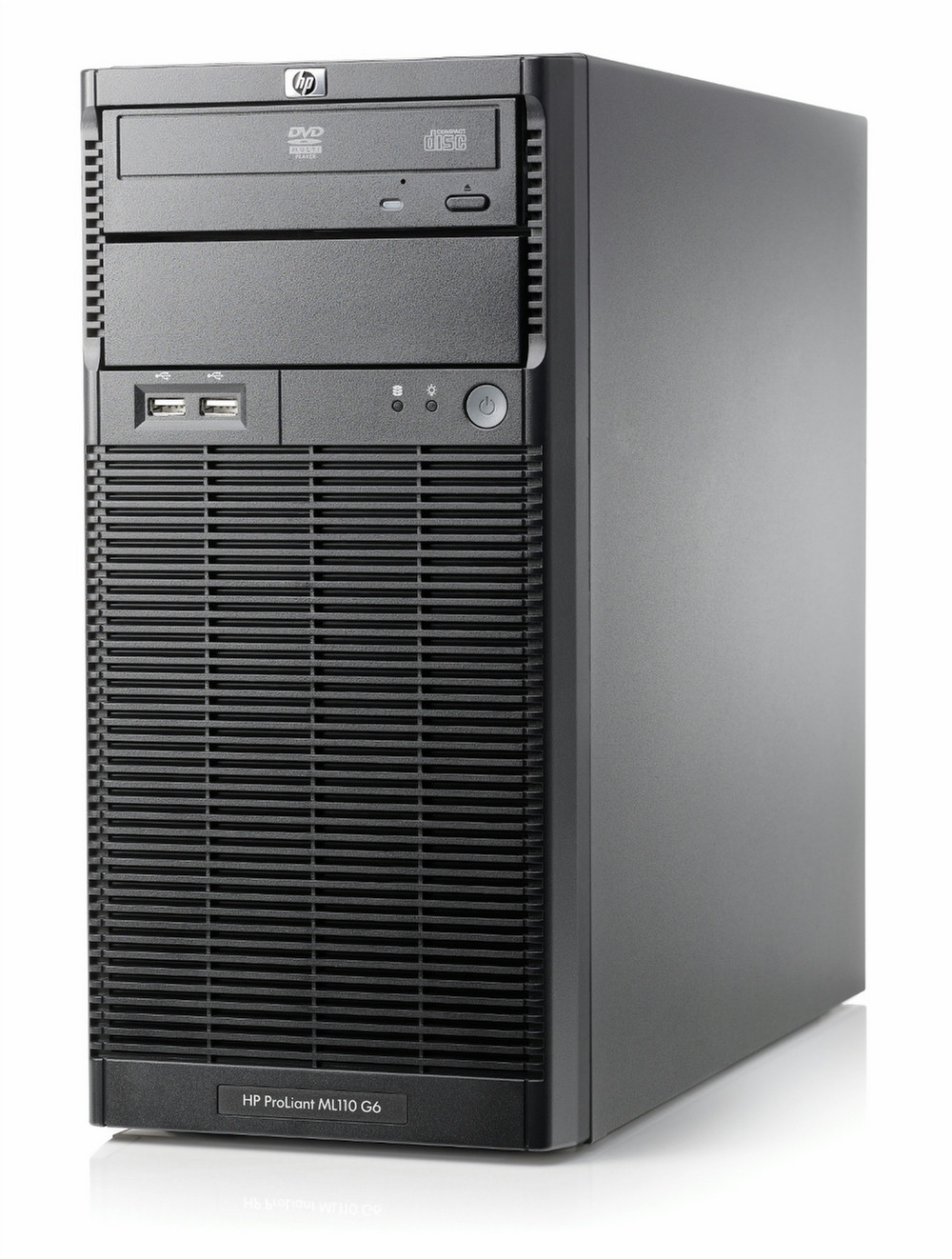

Intel Xeon X3450 (2.66GHz, 8Mb L3), Intel 3420, 4Gb RAM, 2x250Gb HDD, 4U, 300W
The HP ProLiant ML110 G6 is the perfect first server for growing business. It provides an affordable and functional solution to small/medium businesses that are budget-conscious and who have basic or no in-house IT resources.
With proven ProLiant reliability and the support for the latest Intel Xeon, Core i3, Pentium & Celeron processors and DDR3 memory, the ML110 G6 provides the ideal solution to the growing business. A mix of PCI and PCI-Express slots, DIMM slots, drive bays, and server options delivers the expandability needed. Integrated LO100i remote management drives down the operational costs by reducing the number of physical visits. The updated version of HP Easy Set UP CD enhances the installation process further. Optional TPM provides for additional level of security. The standard power supply is now more efficient and reduces power consumption further.
Proven HP Dependability and Support
- HP has built a reputation of dependability by conducting some of the most rigorous and thorough testing in the industry
- ProLiant quality starts with design and is optimized in manufacturing
- Tireless work on system testing and process control ensures only the most dependable products for the customers
- Worldwide network of HP trained service professionals
Easy to Expand and Grow with Changing Business Needs
- This powerful, yet simple platform, provides all the relevant server features in an easy-to-use and easy-to-afford package
- Growth and adaptability are achieved through DDR3 memory, HDDs, USB ports and PCI card expandability, giving the server headroom to grow with your business
- The modular design of ML110 G6 requires less upfront investment and allows for expandability as needed. All major components are designed to be removed or installed with minimal effort
- Companies with remote locations or branch offices can take advantage of the integrated Lights-Out 100i remote management to decrease server/company downtime and increase productivity
- Rack mountable for space saving
A true Server at a Desktop price
- The HP ProLiant ML110 G6 server incorporates features for small/medium businesses and remote site locations
- The focus on design provides a flexible server for low cost expansion
- Improved processor and memory performance along with the support for efficient power supply reduce overall operational costs
- LO100i remote management drives down the cost of managing the servers by reducing visits while decreasing the need for multiple remote management solutions
Proven ProLiant Reliability and Data Protection
- ECC memory protects businesses from data loss and unplanned system downtime
- Smart Array options provide businesses RAID mirroring and striping capability to protect critical data
- LO 100i remote management decreases server downtime
- Trusted Platform Module provides an option for advance data security with hardware-based encryption and authentication
