处理器的特殊功能
| 英特尔®可信执行技术 |
N |
| Processor ARK ID |
46489 |
| 英特尔®虚拟化技术（VT -x） |
Y |
| 英特尔®超线程技术 |
Y |
| 英特尔®清晰视频高清技术 |
N |
| 英特尔®无线显示(WiDi)技术 |
N |
| 英特尔®基于需求开关 |
N |
| 增强型英特尔®SpeedStep动态节能技术 |
Y |
| 英特尔® FDI技术 |
N |
| 英特尔®VT-x的扩展页表（EPT） |
Y |
| 英特尔®vPro™ 技术 |
N |
| 英特尔®MID清晰视频技术 |
N |
| 英特尔® 我的WiFi技术 |
N |
| 英特尔® 防盗技术 |
N |
| 英特尔®直接输入/输出硬件辅助虚拟化技术 (Intel® VT-d) |
N |
| 英特尔® 双显示功能技术 |
N |
| 英特尔® 清晰视频技术 |
N |
| 英特尔®64 |
Y |
| 英特尔® 内线™ |
N |
| 英特尔®快速同步视频技术 |
N |
| 英特尔® Flex内存访问 |
N |
| 英特尔® 快速内存访问 |
N |
| 英特尔®快速存储技术 |
N |
| 英特尔®Turbo Boost技术 |
1.0 |
扩展槽
| PCI Express × 4插槽 |
1 |
| PCI Express x8插槽 |
2 |
内存参数
| 内存时钟速度 |
1333 MHz |
| 最大内部存储 |
512 GB |
| 内存插槽数量 |
32 |
| 内存类型 |
DDR3-SDRAM |
| 内置存储器 |
8 GB |
处理器
| 处理器频率 |
2 GHz |
| 总线类型 |
QPI |
| 处理器支持 ECC 功能 |
N |
| 外壳温度 |
72 °C |
| 步进 |
D0 |
| 处理器运行模式 |
64-bit |
| 核心的处理器数量 |
6 |
| 可选用的嵌入式选项 |
N |
| FSB奇偶校验 |
N |
| Number of Processing Die Transistors |
291 M |
| 处理器前端汇流总线 |
1333 MHz |
| 无冲突处理器 |
N |
| 处理器支持内存通道 |
Quad |
| 处理器高速缓存类型 |
L3 |
| 处理器代码 |
SLBRC |
| 执行禁止位 |
Y |
| 处理器加速频率 |
2.27 GHz |
| 处理器高速缓存 |
18 MB |
| 处理器安装数量 |
1 |
| 散热设计功耗 (TDP) |
105 W |
| 总线频率 |
7 |
| 处理器光刻 |
45 nm |
| 处理器封装尺寸 |
37.5 mm |
环境条件
| 工作高度 |
0 - 3050 m |
| 非运行高度 |
0 - 9144 m |
另外
| 光纤通道 |
Y |
| 英特尔®AES新指令 |
N |
| 以太网连接器 |
Y |
| 系统总线 |
6.4 GT/s |
| Processing die size |
143 mm² |
| 主板晶片 |
Intel 7500 |
| InTru™3D技术 |
N |
| 以太网路(RJ-45)连接接口数量 |
4 |

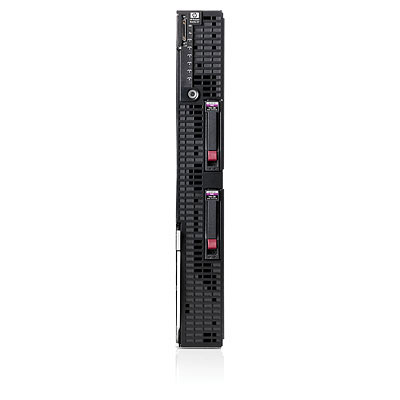

Intel Xeon E6540 (6 core, 2.0GHz, 18MB, 105W), 8GB, 10GbE NC553i
The ProLiant BL620c G7 offers unmatched scalability and performance allowing you to do more in 2 socket blade than ever before. Two models are now available, one optimized for the Intel Xeon E7-2800 and the other optimized for the Intel Xeon 6500/7500. Up to two top performing 130W processors are supported along with 32 RDIMM slots for 1.0TB (E7-2800 models) and 512GB (6500/7500 models) of memory. The four included 10Gb FlexFabric CNA ports support standard Ethernet to advanced networking and the three PCIe Gen2 expansion slots yield an outstanding 96Gb of total I/O bandwidth for up to 140 VMs.
The BL620c G7 is also perfect for 2P applications requiring more than typical 2P server offerings. The BL620c G7 offers up to 2x the performance, 10.7x the memory, an extensive list of RAS features, 20x the embedded and 4.4x the total bandwidth, 4.4x the VMs, 20x the internal storage, and 3x the on-board I/O expansion slots than many other 2P blades available today.
The World’s Most Scalable 2P Server in a Single Full-height Blade Form Factor
- 2P blade with 32 DIMM slots for up to 1.0 TB of memory provides virtualization efficiency for large consolidation projects and a variety of demanding data intensive workloads
- Two Intel Xeon processors each up to 130 watts deliver maximum computing power for a two socket server blade
- 40 Gb of embedded FlexFabric ports and three I/O expansion slots bring the total maximum I/O bandwidth to 96 Gb supporting up to 140 VMs
Powerful 2P Performance and Economics in a Single Blade Server
- Choice of up to two Intel Xeon E7-2800, 6500, or 7500 series processors are ideal for 2P applications requiring performance and features greater than typical dual processor (DP) Intel Xeon 5500 and 5600 offerings
- The BL620c G7 scalability offers up to 10.7x memory, increased memory performance and an extensive list of memory RAS features, 4.4x the VMs, 20x the embedded and 4.4x the total I/O bandwidth, 3x the on-board I/O slots, and 20x the internal storage than other 2P blade servers available today
- Two 10 core processors on the BL620c G7 provide significantly greater performance compared to four 4 core 7400 series processors cutting the number of sockets nearly in half, ideal for reducing licensing costs of software that is based on the number of processor or sockets
- Intel Xeon E7-2800 and 6500 series processors are designed specifically for economical, high performance two socket servers
- Four Embedded HP Virtual Connect 10Gb FlexFabric Adapters
- Four embedded NC553i 10Gb Converged Network Adapter ports deliver extensive bandwidth for network intensive applications with up to 16 connections to network and storage without the need for add-in I/O mezzanine cards
- Integrated Fibre Channel over Ethernet (FCoE) and hardware-based iSCSI with iSCSI boot simplify management and lower infrastructure costs by converging LAN and SAN traffic over the same flexible connection
- Optimize server efficiency with the included TCP/IP offload engine, FCoE, hardware-based iSCSI, Flex-10, and autosensing 10GbE/1GbE capability
- Ability to utilize the adapter high-end FlexFabric features or configure than as standard 1Gb or 10Gb Ethernet ports
Fully Balanced, Optimized Intel Xeon 2S Architecture
- With major advances in CPU performance, applications are already memory and I/O bound, not processor. Yet, typical server blades are often unbalanced, providing processor performance and density at the expense of proportional memory capacity, I/O bandwidth and storage.
- The E7-2800 and the 6500/7500 series represent Intel's greatest Xeon performance leap in history over the previous gen 7400 series. Rather than provide a processor-heavy design, the BL620c G7 fully optimizes all the capabilities of the E7-2800 and 6500/7500 series multiprocessor 2S architecture.
- Each socket includes the maximum allowable two memory controllers that each have two Intel Scalable Memory Interface (SMI) buses. Each SMI connects to a memory buffer that supports four 16 GB DIMMs for a total of 16 DIMMs per processor socket (32 DIMMs or up to 1.0TB of memory per server).
- Each socket supports 130 watts allowing up to two maximum performing E7-2800 and 6500/7500 series processors
