端口 & 界面
| 串口数量 |
1 |
| PS/2连接埠数量 |
2 |
| USB2.0端口的数量 |
3 |
| VGA（D-SUB）端口数量 |
1 |
处理器
| 可支持处理器数量 |
4 |
| 英特尔® 至强® 系列 |
7000 |
| 支持处理器前端总线 |
667 MHz |
| 系统总线类型 |
Front-Side Bus (FSB) |
| 处理器插槽 |
Socket 604 (mPGA604) |
| 兼容处理器 |
Xeon |
内存参数
| DIMM插槽数量 |
16 |
| 支持的内存类型 |
DDR2-SDRAM |
| 最大内部存储 |
64 GB |
存储介质
| 支持存储驱动器界面 |
SAS |
| 热插拔硬盘驱动器托架 |
Y |
| 支持的硬盘数量 |
8 |
重量和尺寸
| 深度 |
673 mm |
| 重量 |
3630 g |
| 宽度 |
483 mm |
| 高度 |
176 mm |
另外
| 主板晶片 |
Intel E8500 |
| 以太网路(RJ-45)连接接口数量 |
2 |

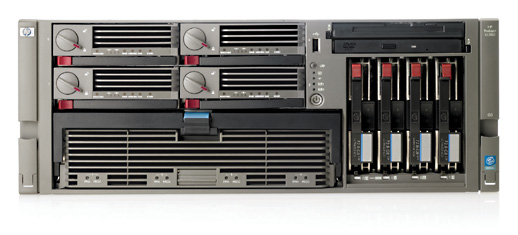

ProLiant DL580 G3 Base Model Server
The ProLiant DL580 G3 server is an enterprise class, 4-way server designed for maximum scalability and high availability. Its radically redesigned chassis offers unsurpassed flexibility and serviceability in a versatile, rack-optimized form factor. Based upon the latest industry standard processing, memory, I/O and networking technologies, the ProLiant DL580 G3 provides the highest levels of performance demanded by today's compute intensive applications. Unparalleled high availability features, including front-accessible Hot Plug RAID Memory, integrated Ultra320 Smart Array 6i controller or Smart Array P600 SAS controller, duplex drive cage, and hot-plug redundant components, guarantee maximum uptime. Integrated Lights-Out (iLO) technology allows remote administration from a standard web-browser without ever having to visit the server. Within the 4U dense form factor, it's highly expandable architecture provides maximum application deployment flexibility with the ability to add PCI-Express, hot plug PCI-X or battery-backed write cache options. Innovative new features, such as the ability to access processors, memory, hard drives, and power supplies while the unit remains secured in the rack, enable rapid response to service events, radically decreasing overall IT costs and server downtime.
