端口 & 界面
最大电缆长度 |
150 m |
可连接 PC 计算机 |
Y |
能量控制
直流电压范围 |
5 - 16 V |
耗电量 |
75 mA |
技术细节
访问读码器 |
N |
指纹读卡机 |
N |
集成键盘 |
N |
访问芯片/读卡器 |
Y |
进入芯片/卡读卡机的类型 |
Contactless |
载波频率 |
125 kHz |

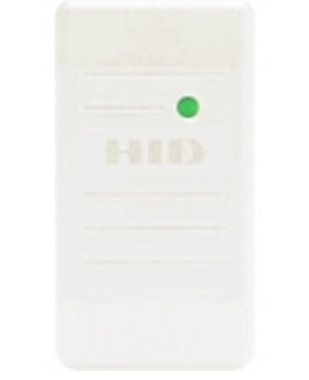

ProxPoint Plus 6005, Wiegand, Rev. B, Long Pigtail, Beep on, LED normally red, reader flashes green on tag read
HID's ProxPoint Plus reader combines multiple configuration options with an attractive, inconspicuous design and economical price. Its secure potted electronics are ideal for both indoor and outdoor applications.
- Small sized, low cost reader features a beeper and multicolor LED which can be host and/or locally controlled.
- Potted reader suitable for indoor or outdoor use.
- 18" (45 cm) wire pigtail standard; consult factory for 9' (2.7 m) pigtail available by special order.
- Classic Series covers available in black, gray, white or beige. Designer Series covers available in black or gray.
- Features a beeper and multicolor LED which can be hostand/ or locally controlled.
- Enables various beeper and LED configurations, depending on individual site requirements.
- Can read HID cards with formats up to 85 bits.
- Designed for mounting directly onto metal with no change in read range performance.
- Available with either Wiegand or Clock-and-Data (magnetic stripe data) output.
- Compatible with all standard access control systems.
- Aesthetic design available in two cover designs and in four colors to match any decor.
- Includes multilingual installation manual.
