技术细节
键盘按键数目 |
12 |
访问读码器 |
Y |
指纹读卡机 |
N |
集成键盘 |
Y |
访问芯片/读卡器 |
Y |
载波频率 |
125 kHz |
能量控制
直流电压范围 |
10 - 28.5 V |
耗电量 |
120 mA |
端口 & 界面
最大电缆长度 |
152 m |
可连接 PC 计算机 |
Y |

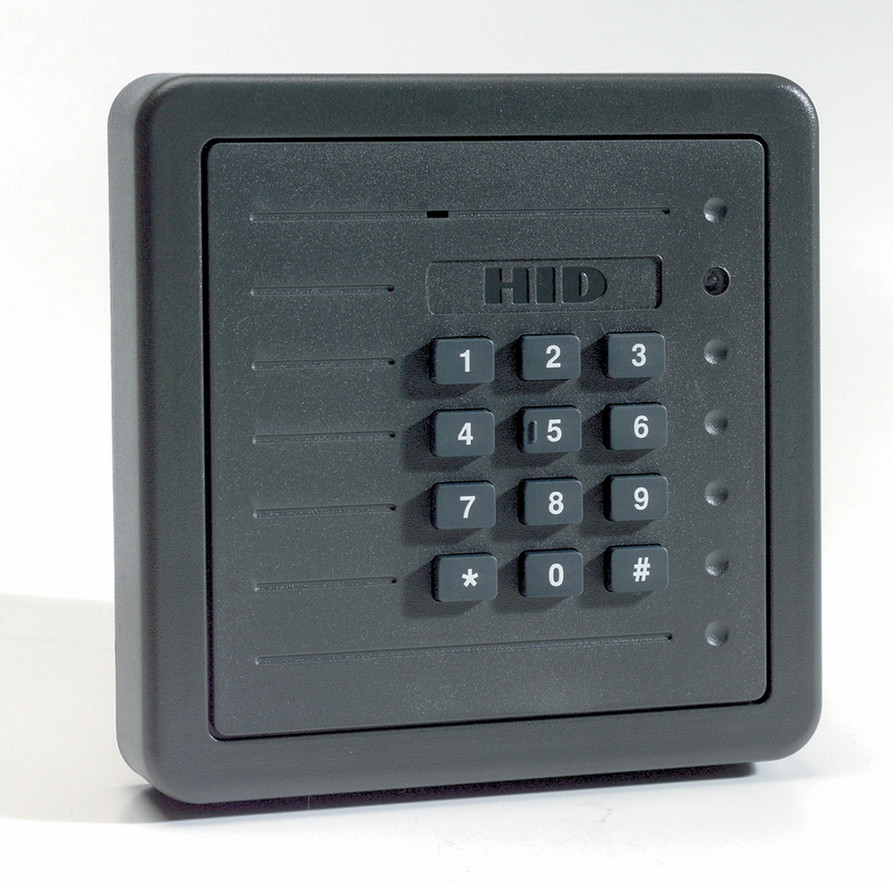

ProxPro 5355, Wiegand, rev. A, Keypad, 3 x 4 Matrix, Grey
The ProxPro proximity card reader's weatherproof design and architecturally attractive enclosure allows easy mounting indoors or out. The ProxPro Reader is ideal for applications requiring a larger read range.
- Ideal for medium-range applications.
- Available with Wiegand, Serial (RS-232/RS-422) or Clock-and-Data interface.
- Sealed for indoor or outdoor use.
- Optional glass mount kit available for mounting the reader behind glass.
- Available in gray or beige.
- Keypad data and card data can be sent on the same cable, or on a separate cable using 2 of 7 or 3 x 4 matrix.
Affords high reliability, consistent read range characteristics, and low power consumption in a single, easy-to-install package.
Features multicolor LED, internal or host control of the LED, and/or beeper and a beeper "off" switch for silent operation.
Provides Wiegand protocol interface compatibility with all standard access control systems.
Offers an optional, fully integrated personal identification number keypad for heightened security. Can be mounted to glass (using the optional glass mounting kit).
