技术细节
| 便宜磁盘的冗余式阵列控制器类型 |
0, 1, 5, 10, 50, 6, JBOD |
| 接口数量 |
8 |
| 格式要素 |
PCI-X 64bit@133Mhz |
| 内存和处理器 |
Intel IOP341 (800MHz), 128 MB |
| Mac兼容性 |
Y |
| 遵守工业标准 |
FCC / CE |

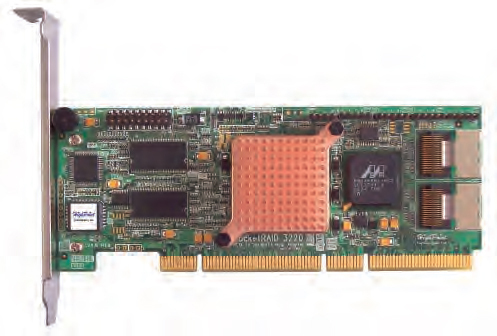

RocketRAID 3220
Host Adapter Architecture
- Intel IOP 80331
- PCI-X 64bit@133Mhz
- 128 MB of DDR II memory with ECC protection
- Write through and write back cache
- 8 SATA II channels at 3Gb/s per port
- Multi -adapter support up to 4 adapters
- BIOS booting support
- BIOS PnP and BBS (BIOS boot specification) support
- Intel RAID 6 Engine for large capacity RAID arrays
- RoHS complaint
Advance RAID Features
- Support RAID 0, 1, 5, 10, 50, 6 and JBOD
- Multiple RAID support
- Multiple Logical Drive Support
- Online array roaming
- Online capacity expansion and Online RAID level migration (ORLM)
- Quick and Background initialization for instant RAID configuration
- Automatic drive insertion / removal detection and rebuild
- Auto Rebuild
- 64bit LBA support greater than 2TB per volume
- S.M.A.R.T monitoring hard drive status for reliability
- VSS (Variable Sector Size) for over 2TB single volume in 32bit LBA OS
- Staggered Spinup with user selection in BIOS
- (MAID) spin down drives in array is idle
Array Monitors, Alerts and Indicators
- Active/Failed LED
- SMTP for email notification
- SAF -TE (I2C) enclosure management
- Alarm / Buzzer alerts for array activity
RAID Management
- Firmware update in the Operating System
- Hot key (ctrl-h) boot-up RAID manager via BIOS
- API library for customizing AP
- Command Line Interface (CLI)
- Web browser-base RAID management software
- Disk scrubbing to prevent degraded RAID arrays
- Bad sector repair and remapping to reduce dropped drives
- ATA pass-through mode support
