端口 & 界面
软盘驱动器电源 连接器 |
1 |
PCI Express电源连接器(6针) |
Y |
周边(莫仕)电 源连接器(4针) |
Y |
ATX电源接头 |
Y |
SATA电源连接器数量 |
1 |

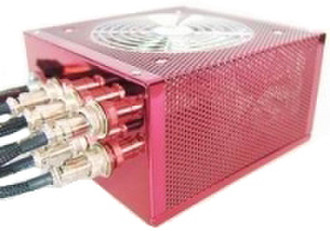

Racing Power Supply Red 580W retail tool box
On the Type R we using our mesh body design. This allows directional convection thereby lowering the need for forced air (Fan) which in turn means lower fan RPM and noise. Also as a side effect it lowers weight, as you notice even using all these techniques our Type R is still quiet heavy. This brought us to the need for a new package which can take the punishment most delivery people dish out while protecting all the circuitry inside, so was born the Type R tool box.
We wanted to do something new with the Modular connections as the existing ones in the market were un-secure. With modding in mind we designed the Omnigrid ™ connectors to resolve this issue. With connections for up to 12 devices, Advanced APFC (NON American Models), after shut down cooling function, over and under Voltage and Temp protection circuits, and ATX 2.2 this represents the latest in Power generation Technology.
- SLI-Ready.
- CrossFire-certified.
- Unique user friendly modular design to reduce excess cables.
- exTender™ cables.
- 20 dB(A) under normal load.
- Supports ATX up to v2.2 & Intel BTX configuration.
- Complies with all Intel & AMD CPU specification requirement.
- Gold Plated connector, preventing rust & bad connection.
- High efficiency APFC (Active Power Factor Correction).
- Connects up to 4 SATA HDD + 8 other component devices.
- Dedicated PCI-E connector.
- EZ-Grip Molex connector.
- All PSU come with 3-Year RTB warranty.
