无线局域网的特点
Wi-Fi标准 |
IEEE 802.11n |
无线局域网类型 |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
无线局域网连接 |
Y |
天线
天线接口类型 |
RP-SMA |
天线 |
Y |
增益 |
2 dBi |
另外
连接方式 |
Wireless |
数据传输率(最大) |
150 Mbit/s |

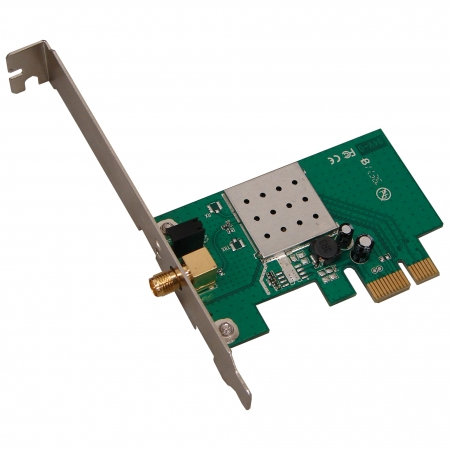

Wireless 802.11n WiFi 1T1R 150Mbps PCIe PCI Express PCI-E 1x Adapter, High Gain 2dBi OMNI Direction External Antenna, RoHS, Windows 8.1/8/7/Vista/XP 32-bit&64-bit
<b>Feature & Benefits:</b>
Protocol IEEE 802.11n Improvements:
- Significant increases in connection speed
- Backward compatible to IEEE 802.11b & IEEE 802.11g
- Download speed up to 150 Mbps
High-Gain OMNI Direction 2dBi Antenna:
- Long transmittance distance for continuous, stable connection
- Ample length in connection wire allows the antenna to be freely location to avoid potential interference
Fully Compatible with the Latest Windows 8.1 Operation Systems.
<b>Specification:</b>
Connection Protocol:
- IEEE 802.11n Draft 2.0 Compliance
- Backward Compatible with 802.11b/g
<b>Maximum Connection Speed: 1T x 1R</b>
- 802.11n: up to 150 Mbps
- 802.11g: up to 54 Mbps
- 802.11b: up to 11 Mbps
<b>Operation Frequency / Channel:</b>
- USA (FCC) 11 Channels: 2.412 GHz ~ 2.462 GHz
- Europe (ETSI) 13 Channels: 2.412 GHz ~ 2.472 GHz
- Japan 14 Channels: 2.412 GHz ~ 2.484 GHz
<b>RF Output Power:</b>
- 17 dBm +/- 1dBi for 802.11b
- 15 dBm +/- 1dBi for 802.11g
- 14 dBm +/- 1dBi for 802.11n
<b>Maximum Transmission Distance:</b>
- Indoor: up to 328 ft.
- Outdoor: up to 984 ft.
<b>Security Protocol:</b>
- 64/128-Bit WEP Encryption
- WPA & WPA2
- WPS
<b>Connection Interface</b>
- Network Adaptor: PCI-Express 1x
- Antenna: RP-SMA plug connector
- Shipping Weight: 1 lbs.
Fully Compatible with latest Microsoft Windows OS
-Windows 8.1 8 7 Vista XP 32-bit 64-bit
Note:
Shipping: Can ship only within USA and Canada
Weight: 0.36 lb
