3-port USB 3.0 Hubs 10/100/1000 Gigabit Ethernet Adapter Windows 8.1 8 7 Vista XP 32-bit 64-bit Mac OS X 10.6 Compatible

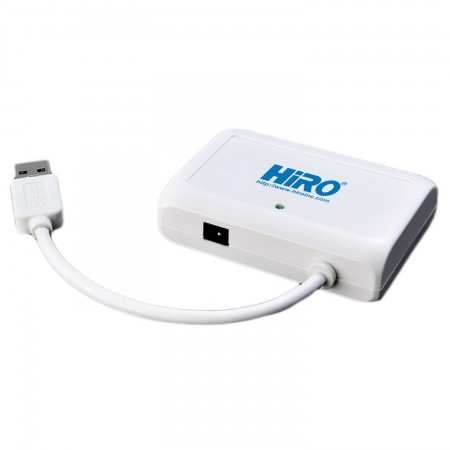

HiRO H50225 USB 3.0 to Gigabit Ethernet 10/100/1000 LAN Adapter with 3 port USB 3.0 Hubs is a high performance and hybrid device offering 3 extra USB 3.0 ports to connect other USB peripherals and a simple plug-and-play Gigabit Ethernet network adapter for desktops, notebook PC, Ultrabook, docking station, game consoles, digital-home appliances, and any embedded system using a standard USB port.
The HiRO H50225 USB 3.0 to Gigabit Ethernet 10/100/1000 LAN Adapter with 3 port USB 3.0 Hubs offers a wide array of features including IPv4/IPv6 checksum offload engine, crossover detection and auto-correction, TCP large send offload and IEEE802.3az EEE (Energy Efficient Ethernet) that allows to enter a low power idle state to reduce power and to achieve a more energy efficient Ethernet. It supports dynamic cable length detection and dynamic power adjustment Green Ethernet in Gigabit mode.
Features and Benefits:
- Extra 3 USB 3.0 ports to connect other USB 2.0/3.0 peripherals
- Compliant with USB 3.0 , USB 2.0 specifications
- Supports all USB 3.0 power saving modes (U0, U1, U2, and U3)
- Supports IEEE 802.3az (Energy Efficient Ethernet)
- IEEE 802.3, 802.3u and 802.3ab compatible
- Supports dynamic cable length detection and dynamic power adjustment Green Ethernet (Gigabit mode only)
- Supports IPv4/IPv6 packet Checksum Offload Engine (COE) to reduce CPU loading, including IPv4 IP/TCP/UDP/ICMP/IGMP & IPv6 TCP/UDP/ICMPv6 checksum check & generation
- Supports full duplex operation with IEEE 802.3x flow control and half duplex operation with back-pressure flow control
- Supports Jumbo frame
Specification:
Model: H50225
Host Interface: USB 3.0 (and USB 2.0 compliant)
Operating System Support
- Windows Windows 8.1 8 7 Vista XP 32-bit 64-bit
- Mac OS10.6 and later.
- ANDROID 1.x, 2.x, 3.x, 4.x
- Linux Kernal 2.6.25 and later.
Ports and Connectors
- Upstream: 1 x Upstream USB 3.0 Port (Type A male Connector)
- Downstream: 3 x Downstream USB 3.0 Port (Type A female Connector)
- Ethernet: 1 x Ethernet Port (RJ-45 connector)
LED
Power LED (Green)
- On: When the adapter is powered
Link LED (Amber)
- On: When connection to a 1000Mbps network
- Off: When connection to a 10/100Mbps network
Status LED (Green)
- On/Blinking: LAN activity.
- Off: No network traffic
Power
Power Mode
- USB Bus -powered
Power Consumption
- Operating Mode: 488 mA
- Suspend Mode : 70 mA
Physical Specifications
Housing Material
- ABS (Plastic)
Dimensions
- Main body without cable: 69 mm(W) x 44 mm(D) x 20 mm(H)
- Main body with cable: 79 mm (W) x 44 mm(D) x 20 mm(H)
Weight
- Approximately 68 g (including cable)
Environmental Specifications
Operating Temperature
- 10-40°C
Storage Temperature
- -10~80°C
