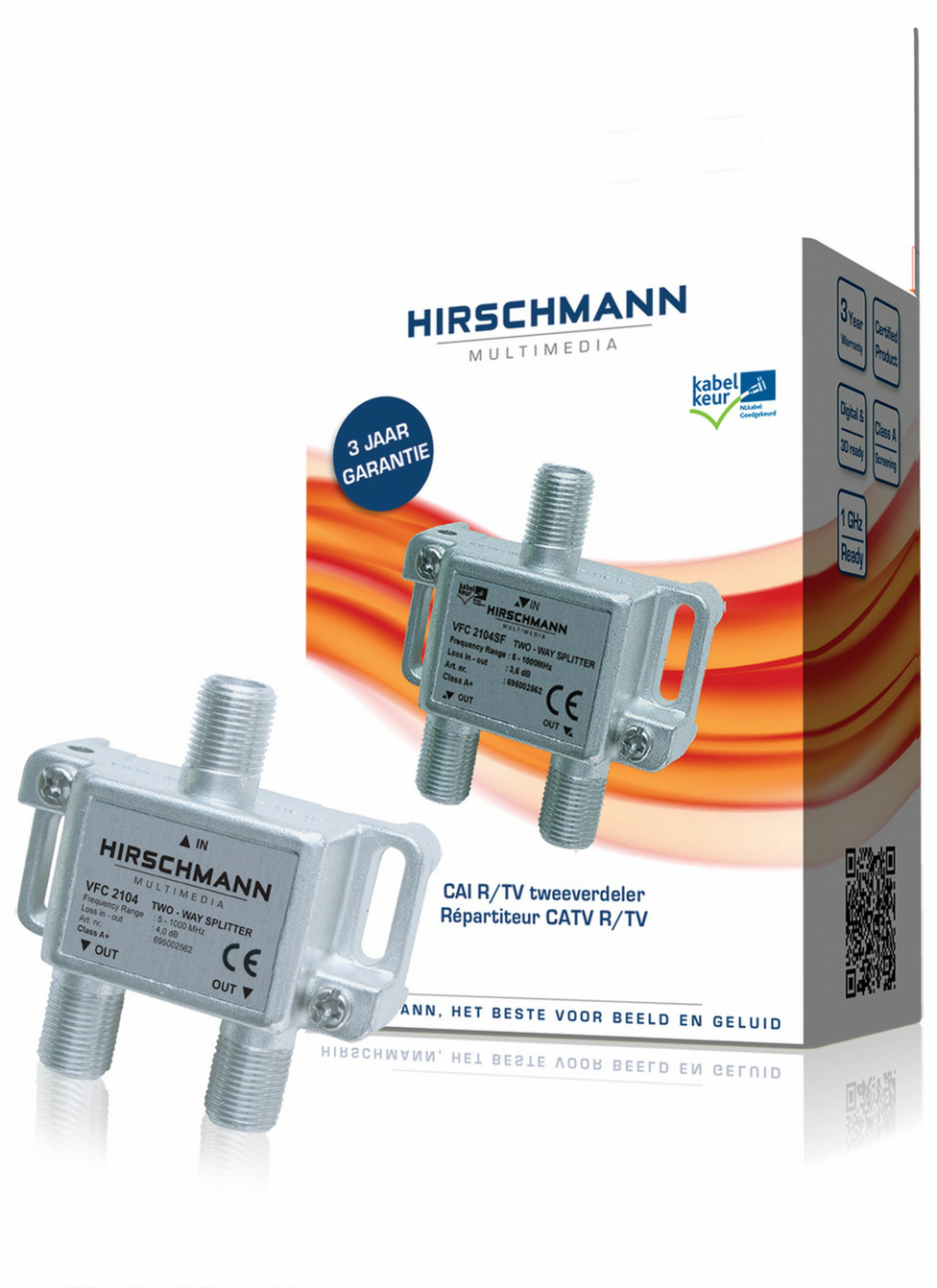

Hirschmann RH-VFC2104-BL video splitter

2-way splitter with return path and F sockets For a symmetrical distribution of CATV signals. • Low insertion loss, high return loss and insulation
• RF shielded Zinc die cast housing with tin plated and solder shield bottom sheet metal plate
• Two pieces of screws attached
• Particular design for easy and convenient installation
• All ports F connector, 75 ohm
• Grounding terminal provided
• Screening factor:5 - 15 MHz > 75 dB
15 - 300 MHz = 85 dB
300 - 470 MHz = 80 dB
470 - 1,000 MHz = 75 dB
• Frequency range:5 - 1,000 MHz
• Attenuation:3.5 - 4.4 dB
• Loss:20 - 25 dB
