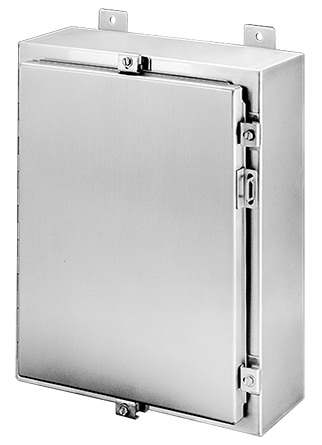

Continuous Hinge with Clamps, Type 4X, Stainless steel, 762 x 610 x 305 mm
Notes:
Purchase panels separately. Optional composite and aluminum panels are available for most sizes.
Reference the Specification Sheet for Popular Cooling Products and Popular Accessories.
Applications: For use in indoor and outdoor corrosive environments that require a water-tight seal, this enclosure's seamless foam-in-place gasket and screw-down clamps provide a secure seal against contaminants.
Specifications:
- 14 gauge Type 304 or Type 316L stainless steel bodies and doors
- Seams continuously welded and ground smooth
- Seamless foam-in-place gasket
- Rolled lip around three sides of door
- Stainless steel door clamp assembly
- Hasp and staple for padlocking
- Door removed by pulling stainless steel continuous hinge pin
- Data pocket is high-impact thermoplastic
- Collar studs provided for mounting optional panels
- Exterior hardware on Type 316L stainless steel enclosures matches enclosure material
- Bonding provision on door; grounding stud on body
Finish:
Door, sides, top and bottom have smooth #4 brushed finish.
