安装
| 屏幕尺寸最大的兼容性 |
24 " |
| 屏幕尺寸最小的 兼容性 |
17 " |
| 安装接口兼容性（最小） |
100 x 100 mm |
| 安装界面相容性（最大） |
100 x 100 mm |
| 支持的显示器数量 |
1 |
| 最大承重量(最大载重能力) |
5.5 kg |
| 适用于 |
Computer monitor |
人体工程学
| 高度调整 |
Y |
| 公共网络访问范围 |
-180 - 180 ° |
| 高度调节范围 |
0 - 130 mm |
| 倾角 |
-3 - 21 ° |
重量和尺寸
| 深度 |
307 mm |
| 重量 |
3800 g |
| 宽度 |
368 mm |
| 高度 |
427 mm |
| 包装盒厚度 |
271 mm |
| 包装重量 |
5300 g |
| 包装盒宽度 |
368 mm |
| 包装盒高度 |
470 mm |
技术细节
| 兼容产品型号 |
HP Compaq 6300 Pro SFF, HP ProDesk 600 G1 SFF, HP Compaq Elite 8300 SFF, HP EliteDesk 800 G1 SFF, HP Compaq 6305 Pro SFF. HP Z serie SFF workstations |

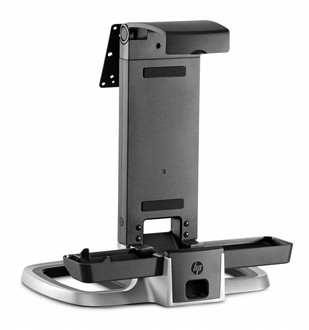

Integrated Work Center 3 for Small Form Factor
Maximize your work space with the HP Integrated Work Center for Small Form Factors v3. Customize an “all-in-one” solution by combining an HP Small Form Factor or Workstation with an LED monitor up to 24 diagonal inches.
Features
- Create an ideal work space with a stylish, innovative stand built to match the newest HP PC designs.
- Simply attach the monitor to the included VESA mounting plate, route the cables through the provided cable channels, place the Small Form Factor PC or Workstation on the back platform of the stand, and lower the top latch to secure it in place.
- Once assembled, you can easily move the entire system around your desk.
- Find your best viewing position with fleixble tilt, swivel, and height adjustment settings. Pivot the monitor 90° into a vertical orientation for less scrolling when reading longer e-mails and web pages.
- Get the reassurance of a one-year parts replacement limited warranty. Additional support is available (North America only) seven days a week, 24 hours a day by phone as well as through online support forums.
- HP Compaq 6300 Pro SFF, HP ProDesk 600 G1 SFF, HP Compaq Elite 8300 SFF, HP EliteDesk 800 G1 SFF, HP Compaq 6305 Pro SFF. HP Z series Small Form Factor Workstations. The stand will also accommodate a VESA-compliant HP monitor up to 24” diagonal in size, or an industry standard VESA-compliant monitor. Monitors sold separately.
