联网
| 以太网的数据传输率 |
1000, 100, 10 Mbit/s |
端口 & 界面
| VGA(D-SUB)端口数量 |
1 |
| PS/2连接埠数量 |
2 |
| 串口数量 |
1 |
内存参数
| 最大内部存储 |
16 GB |
| 错误更正代码 |
Y |
| DIMM插槽数量 |
8 |
| 支持的内存类型 |
DDR2-SDRAM |
处理器
| 支持处理器前端总线 |
800 MHz |
| 支持处理器频率(最大) |
3.6 GHz |
| 可支持处理器数量 |
2 |
另外
| 以太网连接器 |
Y |
| 主板晶片 |
Intel E7520 |
| 以太网路(RJ-45)连接接口数量 |
2 |

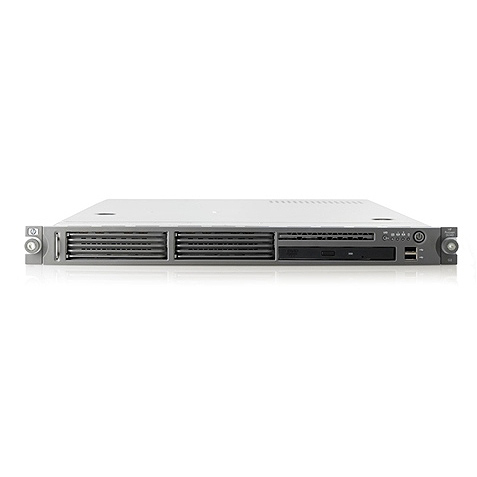

ProLiant DL140 G2 Base Model Server
The ProLiant DL140 G2 server is an affordable 1U, dual processor capable server equipped with essential performance features that provide customers with a platform to design a fully optimized solution. It is ideal for general purpose and high performance computing. The second generation of the DL140 has an array of improved, robust features which sets it apart from both the DL140 G1 and the competition. For memory, the DL140 G2 includes 8 DIMM slots, for a maximum memory load of 16GB of PC2-3200 DDR memory. In terms of I/O, it offers PCI Express capability in its standard full height/full length PCI slot and an additional low-profile/half-length PCI slot. Regarding storage, it now supports both non-hot plug (NHP) Serial ATA (SATA) and SCSI hard disk drives.
