HP ProLiant SL390s G7 Intel 5520 Socket B (LGA 1366) 4U Black,Grey

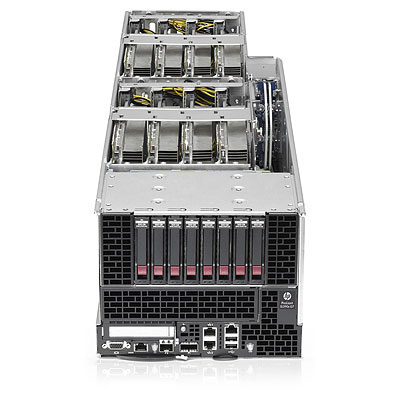

HP ProLiant SL390s G7 4U Left Half Tray Node Server The HP ProLiant SL390s G7 Server is part of a new family, HP ProLiant SL6500 Scalable System, of HP server solutions optimized for scale-out customers to greatly reduce costs, maximize power efficiency, by sharing power supplies and fans, and maintain total flexibility.

The SL390s G7 consists of three different server trays, each with their own benefits. The 1U half width tray is designed for compute density, and the 2U and 4U half width trays are designed for GPU density, support is up to 3 GPUs in the 2U and 8 GPUs in the 4U tray. They each use the same system board and go into the 4U HP ProLiant s6500 Chassis. The SL390s G7 is a two socket Intel server with 12 DDR3 DIMM sockets, two 1 Gb Ethernet ports, one 10 Gb Ethernet port (SFP+) and an option on board Infiniband port (QSFP).

The s6500 Chassis is 4U and can accommodate up to eight half width servers, all individually serviceable. Also, it can support up to four power supplies, non redundant or hot plug redundant fans.

Outstanding Compute Performance and Low Latency

• Support for one low latency ConnectX-2-based 10 Gb Ethernet port (SFP+) and optional QDR Infiniband port (QSFP). Support for two NC362i-based 1 Gb Ethernet ports


Compute and GPU Density

• 1U half width tray offers compute density, offering twice the number of servers per U


Enterprise Management

• Integrated Lights-Out 3 (iLO) allows powerful, hardware-based remote administration and control from a standard web browser to conserve valuable IT staff resources


Chassis Redundancy and Efficiency

• Chassis uses shared power and cooling for better efficiencies
