其他功能
| 硬盘控制器 |
SATA 3Gb/s |
| SMP（适用于表面安装的封装形式）处理器的最大数量 |
2 |
| 视讯卡功能 |
NVIDIA Quadro NVS 285 (128MB PCI Express with NVIDIA TurboCache technology, dual display) |
| 键盘类型 |
HP PS/2\nHP Standard (USB, PS/2) |
| 后面端口 |
5 USB 2.0; 1 serial; 1 parallel; 2 PS/2; 1 RJ-45; 1 audio in; 1 audio out; 1 microphone in |
| 内存升级 |
16 GB |
| 多媒体 |
Integrated High Definition audio with Jack Retasking technology |
| 非操作相对湿度(非冷凝) |
5 - 90% |
| 磁盘子系统控制器 |
Integrated 4 channel SATA 3 Gb/s NCQ controller with RAID 0 or 1 capability, optional 4 channel SAS controller with RAID capability |
| CD读取速度 |
48 x |
| 驱动器托架 |
2 internal 3.5" bays\n2 external 5.25" bays or 1 external 3.5” bay with optional floppy |
| 标准内存容量 |
2 GB MB |
| 软驱类型 |
Optional\nNo Floppy disk Drive |
| 内部端口 |
1 USB 2.0 |
| 指向装置 |
HP PS/2 scroll mouse\nChoice of 2-button scroll mouse (USB optical or PS/2 mechanical); 3-button mouse (USB optical); USB SpaceMouse; USB SpaceBall, USB SpacePilot |
| 硬盘类型 |
80 GB |
| 扩展插槽 |
2 x PCIe (x8 mechanically, x4 electrically)\n1 x PCIe (x16 mechanically, x4 electrically)\n1 x PCIe x16 graphic\n2 x legacy PCI |
| 格式要素 |
Tower |
| 电源类型 |
575 watts wide-ranging, active Power Factor Correction |
端口 & 界面
| 并口数量 |
1 |
| PS/2连接埠数量 |
2 |
| IEEE 1394/Firewire(火线)端口数量 |
1 |
| 耳机输出端口 |
1 |
| 麦克风/音频输入插孔 |
Y |
| VGA（D-SUB）端口数量 |
1 |
| 串口数量 |
1 |
处理器
| 处理器安装数量 |
2 |
| 处理器高速缓存 |
4 MB |
| 处理器光刻 |
65 nm |
| 散热设计功耗 (TDP) |
65 W |
| 处理器频率 |
2 GHz |
| 处理器前端汇流总线 |
1333 MHz |
| 处理器高速缓存类型 |
L2 |
光盘驱动器
| DVD读取速度 |
16 x |
| 光驱类型 |
DVD-ROM |
内存参数
| 内存布局 |
2 x 1 GB |
| 内存类型 |
DDR2-SDRAM |
| 最大内部存储 |
16 GB |
| 内置存储器 |
2 GB |
存储介质
| 硬盘容量 |
80 GB |
| 硬盘转速 |
7200 RPM |
| 硬盘接口 |
Serial ATA |
性能
| 音频系统 |
Integrated High Definition audio with Jack Retasking technology, optional PCI Sound Blaster X-Fi Xtreme Music |
另外
| 主板晶片 |
Intel 5000X |
| 图形适配器 |
Quadro NVS 285 |
| 包括音频 |
Integrated High Definition audio with Jack Retasking technology, optional PCI Sound Blaster X-Fi Xtreme Music |
| 以太网路(RJ-45)连接接口数量 |
1 |

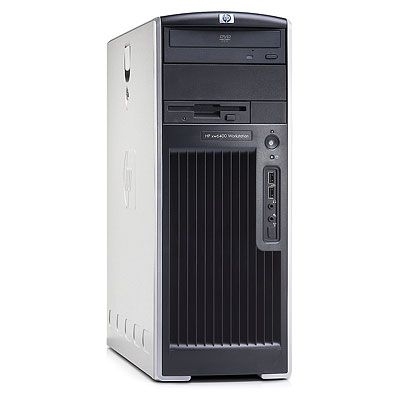

xw6400, 2 x Dual-Core Intel Xeon 5130 2.0GHz, 2GB DDR-2 667-MHz ECC, 80GB SATA 7200-rpm, DVD-ROM, Windows XP Professional
The HP xw6400 (available Q3, 2006) is distinguished by what has been taken away - size, power demands, heat and noise - making this new mid-range workstation the ideal solution for space and power constrained environments. Added is new Intel® processor technology and the new Intel 5000X chipset delivering the performance you need today with the expandability and configuration flexibility for adapting to tomorrow. Focused on meeting specific customer requirements, the HP xw6400 was designed to fit under/in a financial trader desk, OEM enclosures and other small spaces. The HP xw6400 supports up to eight displays.
