能量控制
| 支持以太网（PoE） |
Y |
| 功耗（最大） |
20.1 W |
性能
| 频段 |
2.4/5 GHz |
| 用户数量 |
256 user(s) |
| 5 GHz |
Y |
| 发射功率 |
28 dBmW |
| 以太网的数据传输率 |
10, 100, 1000 Mbit/s |
| 内置存储器 |
256 MB |
| 闪存 |
64 MB |
| 2.4 GHz |
Y |
802.11ac, 1.75Gbit/s, 2.4/5 GHz, 20.1W, 28dBm, IP67

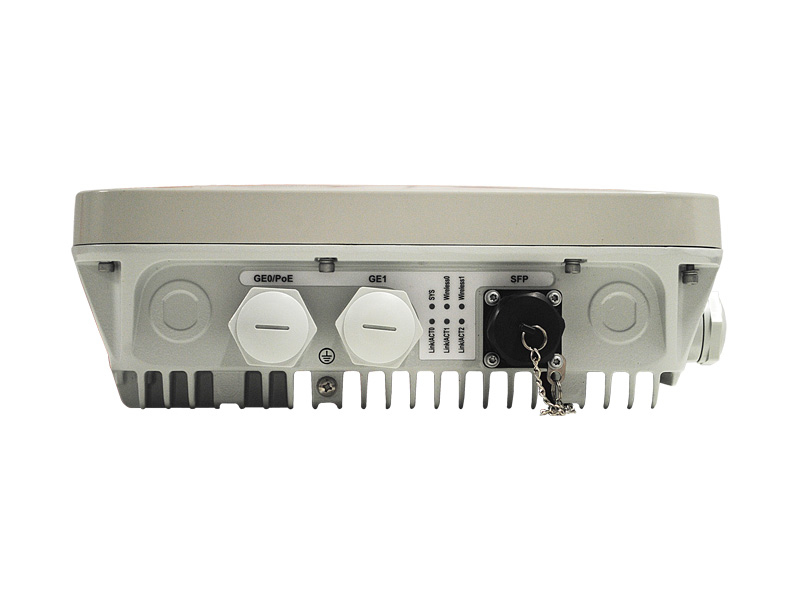

<b>AP8030DN and AP8130DN Access Points</b>
High-speed and reliable access, 3 x 3 MIMO, dual-5G for AP8130DN, and maximum rate of 1.75 Gbit/s (AP8030DN) or 2.6 Gbit/s (AP8130DN).
These 802.11ac APs offer simultaneous 2.4 GHz and 5 GHz connectivity for large outdoor environments including pedestrian/public areas and bridging, backhaul, and video surveillance scenarios. IEEE 802.11a/b/g/n/ac compatibility, flexible networking, and integrated quality controls ensure high performance, easy migration, and simple deployment.
Move seamlessly into the future of WLANs with AP8x30DN APs from Huawei.
<b>Gigabit access is here — get the remarkable operating performance you need in outdoor WLANs</b>
- High-speed, reliable WLAN services: Two GE uplinks and an optical uplink, dual-band 2.4 GHz and 5 GHz connectivity, and 3 x 3 MIMO; 450 Mbit/s at 2.4 GHz, 1.3 Gbit/s at 5 GHz, and 1.75 Gbit/s for both radios
- AP8030DN has built-in antennas; AP8130DN uses removable, adjustable external antennas
- Supports Fit or Fat AP, bridge, WDS, and mesh networking; as a wireless bridge, the AP8130DN can forward data at speeds up to 2.6 Gbit/s using two 5 GHz antennas; PoE power supply (802.3at-compliant)
- Features an energy-efficient design and innovative radio technology to ensure high performance even under unusual network conditions; built-in surge protection and strong hardware protection (rated IP67)
