管理功能
| 支持多重播放 |
Y |
| ARP 检查 |
Y |
| 网上管理 |
Y |
| 支持服务质量（QoS） |
Y |
数据传输
| MAC 地址表 |
16000 entries |
| VLAN 数量 |
4096 |
| 队列数量 |
8 |
| 吞吐量 |
42 Mpps |
安全
| IP-MAC-端口绑定 |
Y |
| 鉴别 |
Guest VLAN, MAC-based authentication, Port-based authentication |
| 环路保护 |
Y |
| 存取控制清单(ACL) |
Y |
| BPDU 过滤/保护 |
Y |
| MAC（媒体存储控制）地址过滤 |
Y |
联网
| 广播风暴控制 |
Y |
| VLAN支持 |
Y |
| IGMP侦听 |
Y |
| 速率限制 |
Y |
| 链路汇集 |
Y |
| 生成树协议 |
Y |
| 动态主机配置协议客户 |
Y |
| 动态主机配置协议服务器 |
Y |
| 10G支持 |
N |
| 支持 MAC 地址自动学习（auto-learning）功能 |
Y |
| 支持 MAC 地址自动年龄更新（auto-aging）功能 |
Y |
| 基于端口的 VLAN |
Y |
| 基于协议的VLAN |
Y |
以太网电源（PoE）
| 以太网（PoE）供电总功率概算 |
370 W |
| 以太网供电（PoE+）端口数量 |
24 |
| 支持以太网（PoE） |
Y |
端口 & 界面
| 基本交换 RJ-45 以太网端口数量 |
24 |
| Combo SFP 端口数量 |
2 |
| 基本交换 RJ-45 以太网端口类型 |
Gigabit Ethernet (10/100/1000) |
| 以太网铜缆技术 |
100BASE-TX, 1000BASE-T, 10BASE-T |
| 千兆以太网(铜)端口数量 |
24 |
| SFP模块插槽数量 |
2 |
协议
| 管理协议 |
SNMP v1/v2c/v3, RMON, Telnet, HTTPS |

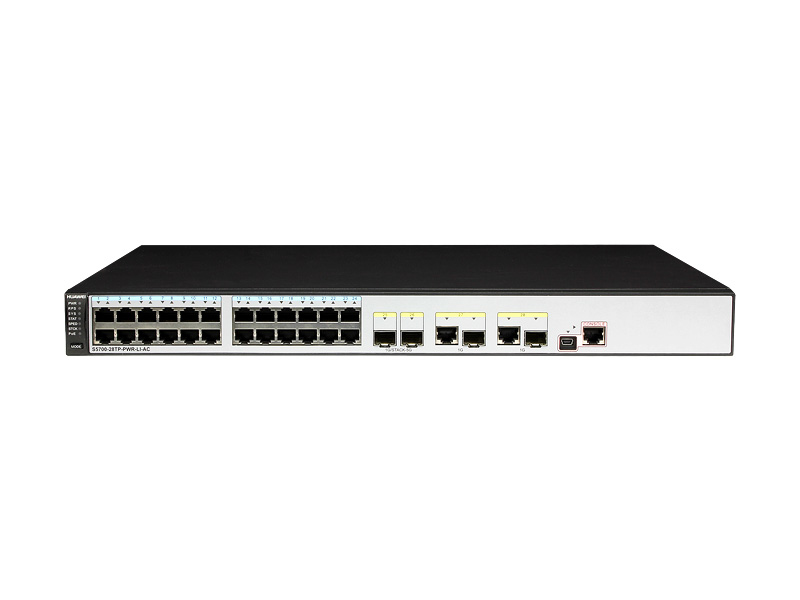

24 x 10/100/1000 Base-T Ethernet RJ-45, 2 x Gigabit Ethernet SFP, 2 x 10/100/1000 Combo RJ-45 / SFP, PoE+
The S5700-LI is a next-generation energy-saving gigabit Ethernet switch that provides flexible GE access ports and 10 GE uplink ports. Building on next-generation, high-performance hardware and the Huawei Versatile Routing Platform (VRP), the S5700-LI supports Advanced Hibernation Management (AHM), intelligent stack (iStack), flexible Ethernet networking, and diversified security control. It provides customers with a green, easy-to-manage, easy-to-expand, and cost-effective gigabit to the desktop solution. In addition, Huawei customizes specialized models to meet customer requirements to suit special scenarios.
Huawei S5700-LI-BAT series battery LAN switches (S5700-LI-BAT for short) are the industry’s first switch series to support built-in batteries and provide visualized battery status management. The S5700-LI-BAT can ensure uninterrupted services in environments facing frequent mains power failures at the access layer. Access switches are usually distributed; therefore, it is costly and space-consuming to deploy high-performance Uninterruptible Power Supplies (UPSs) for the access switches. Low-end UPSs or external lead-acid batteries can provide power redundancy at lower costs, but have low reliability and security, short lifespan, and also occupy significant space. Huawei battery LAN switches solve this problem. The use of internal batteries ensures stable operation of the access layer in the event of mains power failures.
CSFP switches support downlink CSFP ports, and each downlink CSFP port provides bi-directional 2 Gbit/s bandwidth. CSFP switches apply to scenarios where users increase continuously and demand higher bandwidth, and scenarios where deploying fibers is costly and difficult and construction timeframes are long.
The switches with front power sockets can be installed in the 300 mm deep cabinet. The S5701-LI series with front power sockets can be installed in the 300 mm deep cabinet. They can be maintained through the front panel, saving space in small equipment rooms.
