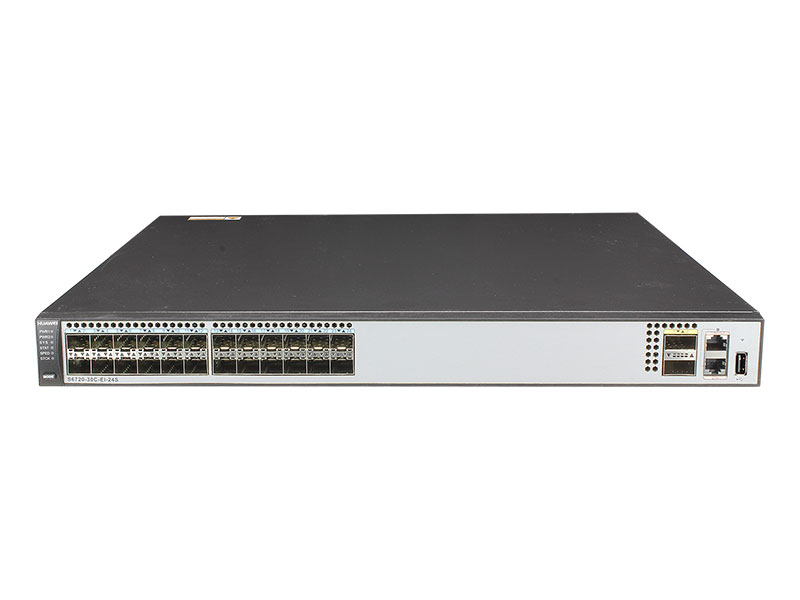

Huawei S6720-30C-EI-24S-AC Managed L3 10G Ethernet (100/1000/10000) 1U Black network switch

24 x 10 GE SFP+, 2 x 40 GE QSFP+, AC, RPS, 2.56 Tbit/s, 720 Mpps S6720 Series Next-Generation Enhanced 10 GE Switches
High-availability, scalable 10 Gbit/s server access for Internet Data Centers (IDCs) and large traditional data centers. High-performance forwarding (up to 1,080 Mpps), total switching capacity of 2.56 Tbit/s, and optional configuration of 4 x 40 GE QSFP+ interface card gives the S6720-EI Series Switches unusual flexibility: use to provide access to high-bandwidth server-based applications, or as a core or aggregation switch in enterprise campus networks.

Intelligent QoS features, comprehensive security, and 1+1 backup of AC and DC power modules provide secure, reliable operation. For additional flexibility, the 40 Gbit/s QSFP+ ports support long-distance stacking.

High-performance fixed switches to handle applications for data center servers and core campus networks

- The S6720 provides line-speed 10 GE access ports and line-speed 40 GE uplink ports, and supports long-distance stacking with 480 Gbit/s bi-directional stack bandwidth;
- Supports comprehensive security policies, such as anti-DDoS, binding tables, and IPSG, plus reliability mechanisms;
- Provides enhanced QoS capabilities, strong MPLS service processing capabilities, and high scalability. Supports 1+1 backup of AC and DC power modules that can be installed on the same device, as well as sFlow traffic monitoring technology;
- Supports Easy Operation Commander, Zero-Touch Provisioning (ZTP) of new devices, batch device upgrades and patch installation, and faulty device replacement.

Large-capacity, high-density, 10 Gbit/s access

To provide sufficient bandwidth for users, many servers, particularly those in data centers, use 10G network adapters. The S6720 can be used in data centers to provide high forwarding performance and 10 GE ports. The S6720 has the high density of 10 GE ports and the largest switching capacity in the industry. Each S6720 provides a maximum of 6 line-speed QSFP+ ports and 48 line-speed 10 GE ports.

S6720 ports support 1 GE and 10 GE access and can identify optical module types, maximizing the return on investment and allowing users to flexibly deploy services.
The S6720 has a large buffering capacity and uses an advanced buffer scheduling mechanism to ensure non-block transmission when data center traffic volume is high.

Comprehensive security policies
The S6720 provides multiple security measures to defend against Denial of Service (DoS) attacks, as well as attacks against networks or users. DoS attack types include SYN Flood attacks, Land attacks, Smurf attacks, and ICMP Flood attacks. Attacks to networks refer to STP BPDU/root attacks. Attacks to users include bogus DHCP server attacks, man-in-the-middle attacks, IP/MAC spoofing attacks, and DHCP request flood attacks. DoS attacks that change the CHADDR field in DHCP packets are also attacks against users.
The S6720 supports DHCP snooping, which generates user binding entries based on users’ access interfaces, MAC addresses, IP addresses, IP address leases, and VLAN IDs. DHCP snooping discards invalid packets that do not match any binding entries, such as ARP spoofing packets and IP spoofing packets. This prevents hackers from using ARP packets to initiate attacks on campus networks. The interface connected to a DHCP server can be configured as a trusted interface to protect the system against bogus DHCP server attacks.
The S6720 supports strict ARP learning, which prevents ARP spoofing attacks that exhaust ARP entries. The S6720 also provides an IP source check to prevent DoS attacks caused by MAC address spoofing, IP address spoofing, and MAC/IP spoofing. URPF, provided by the S6720, authenticates packets by checking the packet transmission path in reverse, which can protect the network against source address spoofing attacks.
The S6720 supports centralized MAC address authentication and 802.1x authentication. The S6720 authenticates users based on statically or dynamically bound user information such as the user name, IP address, MAC address, VLAN ID, access interface, and flag indicating whether anti-virus software is installed. VLANs, QoS policies, and ACLs can be dynamically applied to users.
The S6720 can limit the number of MAC addresses learned on an interface to prevent attackers from exhausting MAC address entries by using bogus source MAC addresses. This function minimizes the packet flooding that occurs when users’ MAC addresses cannot be found in the MAC address table.

Higher reliability mechanism
The S6720 supports redundant power supplies. You can choose a single power supply or use two power supplies to ensure device reliability. With two fans, the S6720 has a longer MTBF time than its counterpart switches.
The S6720 supports MSTP multi-process that enhances the existing STP, RSTP, and MSTP implementation. This function increases the number of MSTPs supported on a network. It also supports enhanced Ethernet reliability technologies such as Smart Link and RRPP, which implement millisecond-level protection switchover and ensure network reliability. Smart Link and RRPP both support multi-instance to implement load balancing among links, optimizing bandwidth usage.
The S6720 supports the Enhanced Trunk (E-Trunk) feature. When a CE is dual-homed to two S6720s (PEs), E-Trunk protects the links between the CE and PEs and implements backup between the PEs. E-trunk enhances link reliability between devices.
The S6720 supports the Smart Ethernet Protection (SEP) protocol, a ring network protocol applied to the link layer on an Ethernet network. SEP can be used on open ring networks and can be deployed on upper-layer aggregation devices to provide fast switchover (within 50 ms), ensuring the non-stop transmission of services. SEP features simplicity, high reliability, fast switchover, easy maintenance, and flexible topology, facilitating network planning and management.
The S6720 supports Ethernet Ring Protection Switching (ERPS), also referred to as G.8032. As the latest ring network protocol, ERPS was developed based on traditional Ethernet MAC and bridging functions and uses mature Ethernet OAM function and a Ring Automatic Protection Switching (R-APS) mechanism to implement millisecond-level protection switching. ERPS supports various services and allows flexible networking, helping customers build a network with lower OPEX and CAPEX.
The S6720 supports VRRP. Two S6720s can form a VRRP group to ensure non-stop reliable communication. Multiple equal-cost routes to upstream devices can be configured on the S6720 to provide route redundancy. When an active route is unreachable, traffic is switched to a backup route.

Enhanced QoS control mechanism
The S6720 implements complex traffic classification based on packet information, such as the 5-tuple, IP preference, ToS, DSCP, IP protocol type, ICMP type, TCP source port, VLAN ID, Ethernet protocol type, and CoS. ACLs can be applied to inbound or outbound directions on an interface. The S6720 supports a flow-based two-rate three-color CAR. Each port supports eight priority queues, multiple queue scheduling algorithms, such as WRR, DRR, SP, WRR + SP, and DRR + SP, and WRED, a congestion avoidance algorithm. All of these features ensure high-quality voice, video, and data services.

High scalability
The S6720 supports the iStack function, which allows switches that are far apart to form a stack. A port on the S6720 can be configured as a stack port using a command for flexible stack deployment. The distance between stacked switches is further increased when the switches are connected with optical fibers. A stack is easier to expand, is more reliable, and has a higher performance rate than a single switch. New member switches can be added to a stack without interrupting services when the system capacity needs to be increased or a member switch fails. Compared with the stacking of chassis-shaped switches, the iStack function can increase system capacity and port density without being restricted by hardware. Multiple devices in a stack can function as one logical device, which simplifies network management and configuration.

Convenient management
The S6720 supports automatic configuration, plug-and-play, deployment using a USB flash drive, and batch remote upgrades. These capabilities simplify device management and maintenance and reduce maintenance costs.
The S6720 supports SNMP v1/v2c/v3 and provides flexible methods for managing devices. Users can manage the S6720 using the CLI, Web NMS and Telnet. The NQA function assists users with network planning and upgrades. In addition, the S6720 supports NTP, SSH v2, HWTACACS, RMON, log hosts, and port-based traffic statistics.
The S6720 supports GARP VLAN Registration Protocol (GVRP), which dynamically distributes, registers, and propagates VLAN attributes to reduce network administrator workloads and ensure correct VLAN configuration. In a complex network topology, GVRP simplifies VLAN configuration and reduces network communication faults caused by incorrect VLAN configuration.
The S6720 supports Multiplex VLAN (MUX VLAN). MUX VLAN isolates Layer 2 traffic between interfaces in a VLAN. Interfaces in a subordinate separate VLAN can communicate with ports in the principal VLAN, but cannot communicate with each other. MUX VLAN is typically used on an enterprise intranet to isolate user interfaces from each other while still allowing them to communicate with server interfaces. This function prevents communication between network devices connected to certain interfaces or interface groups, but allows these devices to communicate with the default gateway.
The S6720 supports BFD, which provides millisecond-level fault detection for protocols, such as OSPF, IS-IS, VRRP, and PIM, to improve network reliability. Complying with IEEE 802.3ah and 802.1ag, the S6720 supports point-to-point Ethernet fault management and can detect faults in the last mile of an Ethernet link to users. Ethernet OAM improves Ethernet network management and maintenance capabilities and ensures a stable network.

Various IPv6 features
The S6720 supports IPv4/IPv6 dual stack and can migrate from an IPv4 network to an IPv6 network. S6720 hardware supports IPv4/IPv6 dual stack, IPv6 over IPv4 tunnels (including manual tunnels, 6to4 tunnels, and ISATAP tunnels), and Layer 3 line-speed forwarding. The S6720 can be deployed on IPv4 networks, IPv6 networks, or networks that run both IPv4 and IPv6. This makes networking flexible and enables a network to migrate from IPv4 to IPv6.
The S6720 supports various IPv6 routing protocols, including RIPng and OSPFv3. The S6720 uses the IPv6 Neighbor Discovery Protocol (NDP) to manage packets exchanged between neighbors. It also provides a Path MTU (PMTU) discovery mechanism to select a proper MTU on the path from the source to the destination, optimizing network resource utilization and obtaining the maximum throughput.
