端口 & 界面
| PS/2连接埠数量 |
2 |
| 并口数量 |
1 |
| 串口数量 |
2 |
| VGA（D-SUB）端口数量 |
1 |
内存参数
| 最大内部存储 |
8 GB |
| 内存插槽数量 |
4 DIMM |
| 错误更正代码 |
Y |
| 内存类型 |
DDR2-SDRAM |
| 内置存储器 |
0.5 GB |
处理器
| 处理器前端汇流总线 |
800 MHz |
| 处理器高速缓存类型 |
L2 |
| 处理器高速缓存 |
1 MB |
| 处理器安装数量 |
1 |
| SMP（适用于表面安装的封装形式）处理器的最大数量 |
1 |
| 处理器频率 |
1.8 GHz |
另外
| 图形适配器 |
ES1000 |
| 以太网路(RJ-45)连接接口数量 |
1 |

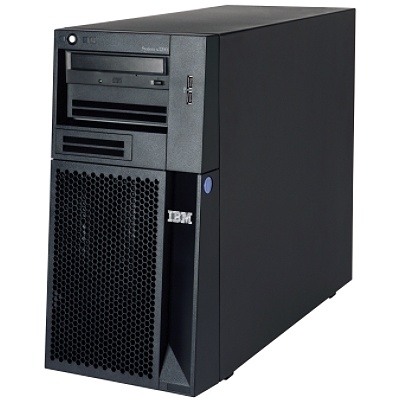

System x3200, Intel Pentium Dual Core E2160 1.8 GHz/800 MHz (2x 1 MB L2 cache), 1x 512MB PC2-5300 CL5 ECC DDR2 SDRAM DIMM, 0x 0 GB hot-swap SATA HD (open bay), CD-ROM, Gigabit Ethernet, 1x 400 W power supply, ATI ES1000 (16 MB)
The IBM System x3200 can help lower your IT costs throughout its business lifecycle. The x3200 is not only affordable to purchase, but it’s also easy to manage and keep up to date.
Keep your business in business
With unprecedented system availability, the x3200 can help you maximize uptime for your file and print or network infrastructure applications. Select SATA, near-line SATA or Serial Attached SCSI hard disk drives (HDDs) depending on your reliability requirements. If a hard disk drive or power supply fails, the x3200 can stay up and running with redundant power supplies and hot-swap SATA and SAS HDDs.
Protect your data, your investment
Standard on select models, integrated hardware RAID-0 or -1 provides protection for your business-critical data. Optional upgrades to RAID-5 or tape backup solutions are also available.
Manage your growth
The x3200 helps minimize management costs for distributed or remote applications. It supports industry-standard, IPMI-based systems management and the IBM Remote Supervisor Adapter II for advanced hardware management—enabling your IT staff to do more with less.
