性能
| 频道/通道 数量 |
13 |
| 固件可升级 |
Y |
| 网上管理 |
Y |
| 支持服务质量（QoS） |
Y |
| 频段 |
2.4 - 2.483, 5.150 - 5.850, 5.150 - 5.250, 5.250 - 5.350, 5.725 - 5.850 GHz |
| 用户数量 |
256 user(s) |
| 5 GHz |
Y |
| 无线隔离 |
Y |
| 发射功率 |
23 dBmW |
| VLAN支持 |
Y |
| 以太网的数据传输率 |
10, 100, 1000 Mbit/s |
| 调制 |
16-QAM, CCK, 64-QAM, 256-QAM, BPSK, QPSK |
| 2.4 GHz |
Y |
安全
| 支持 SSID 数量 |
16 |
| SSID 广播 打开/关掉 |
Y |
另外
| 以太网路(RJ-45)连接接口数量 |
1 |
| 数据传输率（最大） |
867 Mbit/s |
80211ac, 2.4/5 GHz, 1x 10/100/1000Base-T RJ-45, 1x Console Port, 1x USB 2.0, PoE, IP30, 157 x 157 x 40 mm

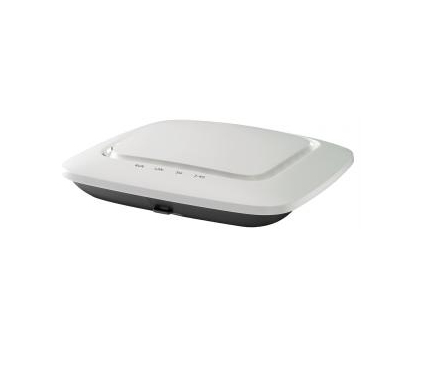

The ICC ICX10UAD is a multi-mode access device designed to be a cost-effective dual-radio access point with optional routing capability. This UAD AP features two streams and 802.11ac technology for 867Mbps performance for 5Ghz devices and 300 Mbps for 802.11n clients.
ICC’s Intelligent Content Control for SMB networks ensure simple connectivity, identification of content, content control to ensure delivery for an enhanced user experience even while the network becomes more saturated. Policy-based and Software-driven features allow for specific Quality-of-Service streams that ensure Voice, Video, and Data services based on client or provider requirements. Combined with basic Firewall setting, these devices enable users to start deploying true all-wireless network environments at superior value.
Unified Access Device (UAD) series of all wireless indoor and outdoor networking platforms, fits the needs of expanding mobility networks seeking greater IP data control of content, security, and flexibility. Designed for management via traditional SNMP, cloud, or ICC’s own icXcloud (analytics) or icXmanager (device manager), these devices add firewall, routing, WIDS, Captive Portal, Radius, and other features including ICC Networking’s patented content management systems to reduce contention. These all 802.11ac high performance systems add value to any small to medium enterprise wireless environment.
