技术细节
| 类型 |
Bezel panel |
| 支持的硬盘数量 |
3 |
| 硬盘接口 |
Serial ATA |
| 风扇直径 |
80 mm |
| 风扇数量 |
1 |

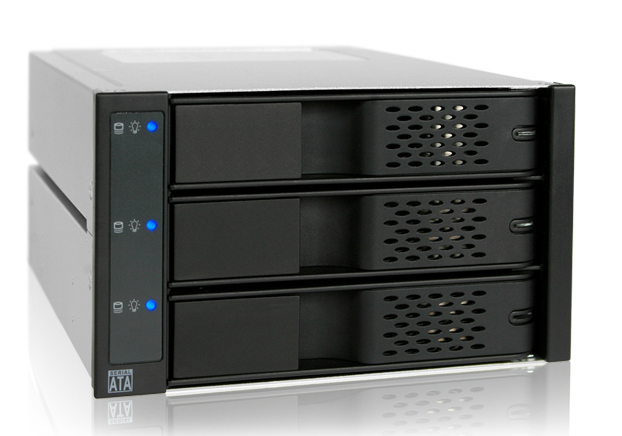

FlexCage Tray-Less 3x3.5" in 2x5.25" SATA HDD Cage
<b>Space Saving & Tray-less Design</b>
The MB973SP-1B has been designed to maximize space use by allowing up to 3 x 3.5” SATA III hard drives, while only consuming two 5.25” device bays. The FlexCage also only requires two 4-pin power ports (or two 15-pin power ports with included 4 pin to 15 pin adapter cables), to power up to three 3.5” hard drives. In order to further the convenience of the FlexCage, our renowned tray-less technology is integrated into the cage -- no screws or tools are required to insert or eject the drives, making hot swapping a completely hassle free experience. However, because of the tray-less technology used, maintenance becomes dramatically reduced to simply ejecting a failed drive, and then reinserting the replacement.
<b>Flexible Cooling</b>
On the rear of the MB973SP-1B uses a large 80mm cooling fan to pull cool air from the front ventilation slots, over the drives, and exhaust the warm air out through the rear ventilation slots. The Flexcage also features the Active Power Technology power system, so that the fan used and the individual LED are only powered on if a drive is inserted. The included 80mm cooling fan also can be easily replaced and maintained, as the unit is fully removable and replaceable with most aftermarket cooling fans of the same size. To expand the range of compatible fans, both 2 and 3 pin standard fan power ports are available and can be easily accessed.
<b>Server Ready</b>
The FlexCage uses our Flex Fit Design, which accommodates to different tab lengths when installing to a server or tower computer case. This will help reduce the build time, and also adds greater compatibility for different system builds. In addition, there may be systems that use 15 power connectors exclusively, and so 4 to 15 pin power adapter cables are included to provide better accessibility for various host systems. Each bay includes individual LED indicators, displaying both drive power and activity. This is to provide drive status information at all times. Similarly, each drive door has a multi-locking latch mechanism to prevent a door from being opened easily. For best durability, a solid aluminum panel is used in each of the door latch, making it an ideal solution for systems where IT and non-IT personnel may have access to. Lastly, to ensure a peace of mind, the FlexCage is backed with our 3 year warranty, equivalent to a hard drive’s warranty.
