显示器
| 独立h/v同步 |
Y |
| 显示器尺寸 |
19 " |
| 垂直扫描范围 |
56 - 75 Hz |
| 长宽比 |
5:4 |
| 触摸屏技术 |
Capacitive |
| 响应时间 |
14 ms |
| 对比度 |
1000:1 |
| 显示器分辨率 |
1280 x 1024 pixels |
| 视角，水平 |
178 ° |
| 视角，垂直 |
178 ° |
| 像素 |
0.294 x 0.294 mm |
| 显示器可视区域 HxV |
301.1 x 376.5 mm |
| 显示器亮度 |
250 cd/m² |
| 显示技术 |
IPS |
| 显示类型 |
LED |
端口 & 界面
| 包含电缆 |
AC, Audio (3.5mm), DVI, USB, VGA |
| DVI-D接口数量 |
1 |
| USB2.0端口的数量 |
1 |
| VGA（D-SUB）端口数量 |
1 |
性能
| 可支持的Linux操作系统 |
Y |
| 扬声器数量 |
2 |
| 内置麦克风 |
N |
| 同步接触点（Windows7） |
10 |
| OmniTapps多点触控兼容性 |
N |
| 即插即用 |
Y |
| RMS的额定功率 |
2 W |
| OSD语言数 |
7 |
| 触控技术 |
Multi-touch |
| 可支持的Mac操作系统 |
Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| 内置摄像头 |
N |
| 可支持的Windows操作系统 |
Windows 2000, Windows 2000 Professional, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows CE, Windows NT, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| 屏幕显示 （OSD）语言 |
CHI (SIMPL), CHI (TR), DEU, ENG, ESP, FRE, ITA, JPN |
重量和尺寸
| 含底座尺寸（宽 x 深 x 高） |
432 x 391 x 219 mm |
| 重量（含底座） |
6900 g |
| 深度 |
54.5 mm |
| 宽度 |
432 mm |
| 高度 |
358 mm |
能量控制
| 功耗（一般操作） |
20 W |
| 电源管理 |
Y |
| 交流电（AC）输入电压 |
100-240 V |
| 交流电（AC）输入频率 |
50/60 Hz |
| 电源类型 |
AC |
人体工程学
| VESA 安装支架 |
Y |
| 线缆锁插槽 |
Y |
| VESA 安装系统兼容界面 |
100 x 100 mm |
| 倾斜调整 |
Y |
| 墙壁支架 |
Y |
| 倾角 |
5 - 90 ° |
环境条件
| 运行湿度范围(H-H) |
20 - 80% |
| 储存温度范围 (T-T) |
-20 - 60 °C |
| 储存相对湿度范围（H - H） |
10 - 90% |
认证标准
| 认证 |
CE, CB, TÜV, VCCI, CU, cULus |
另外
| 水平扫描范围 |
31.4 - 80 kHz |
| 显示器的颜色数量 |
16.78 million colours |
| 产品色彩 |
Black, White |
| 显示器对角线（公制） |
48 cm |
| 运行温度范围（T - T） |
0 - 40 °C |
48.26 cm (19 ") , 5:4, 1280 x 1024, IPS, projective capacitive, multi touch, 14 ms, VGA, DVI, USB, 432 x 391 x 219 mm, 6900 g

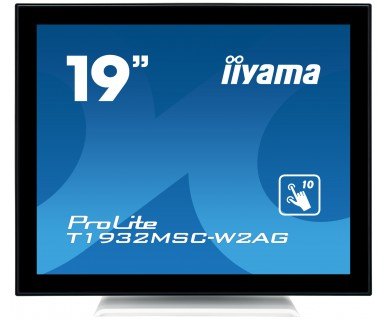

The ProLite T1932MSC-W2AG 19" multi touch screen is based on projective capacitive technology which thanks to a glass overlay covering the screen guarantees high durability, scratch-resistance and perfect picture performance. The IPS matrix guarantees high performance with accurate and consistent colour reproduction, and wide viewing angles. Anti Glare coating helps to avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. Its touch function remains unaffected even if the glass is scratched. A solid and steady base supports the touch screen with an adjustable stand offering full 90 degree positioning angles. In addition, the edge-to-edge glass design creates an eye-catching finish with high light transmission guaranteeing perfect picture clarity and brilliant colours.
IPS
IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.
Touch technology - Capacitive
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and magnetic ball.
IP54
The IP Code classifies how resistant a device is to foreign objects and moisture. IP54 means that the monitor will operate in dusty conditions, and will resist splashing water.
Scratch resistance
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
AG Coating
The Anti Glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.
