显示器
| 独立h/v同步 |
Y |
| 显示器尺寸 |
21.5 " |
| 长宽比 |
16:9 |
| 数字垂直频率 |
56 - 75 Hz |
| 触摸屏技术 |
Projected capacitive system |
| 数字水平频率 |
31.5 - 82.3 kHz |
| 响应时间 |
8 ms |
| 对比度 |
1000:1 |
| 显示器分辨率 |
1920 x 1080 pixels |
| 视角，水平 |
178 ° |
| 视角，垂直 |
178 ° |
| 像素 |
0.247 x 0.247 mm |
| 显示器可视区域 HxV |
476.6 x 268.1 mm |
| 显示器亮度 |
250 cd/m² |
| 显示技术 |
IPS |
| 支持的视频模式 |
1080p |
| 显示类型 |
LED |
能量控制
| 功耗（节能） |
2 W |
| 功耗（一般操作） |
27 W |
| 电源类型 |
AC |
端口 & 界面
| PC音频 |
Y |
| DVI-D接口数量 |
1 |
| VGA（D-SUB）端口数量 |
1 |
性能
| 可支持的Linux操作系统 |
Y |
| 扬声器数量 |
2 |
| 内置麦克风 |
N |
| 同步接触点的数目 |
10 |
| 即插即用 |
Y |
| RMS的额定功率 |
6 W |
| HDCP |
Y |
| OSD语言数 |
7 |
| 触控技术 |
Multi-touch |
| 可支持的Mac操作系统 |
Y |
| 内置摄像头 |
N |
| 内置扬声器 |
Y |
| 可支持的Windows操作系统 |
Y |
| 屏幕显示 （OSD）语言 |
CHI (SIMPL), CHI (TR), DEU, ENG, ESP, FRE, ITA, JPN |
人体工程学
| VESA 安装支架 |
Y |
| VESA 安装系统兼容界面 |
100 x 100 mm |
| 墙壁支架 |
Y |
| 倾角 |
-5 - 90 ° |
环境条件
| 运行湿度范围(H-H) |
20 - 80% |
| 储存温度范围 (T-T) |
-20 - 60 °C |
| 储存相对湿度范围（H - H） |
10 - 90% |
重量和尺寸
| 深度 |
219 mm |
| 重量 |
7200 g |
| 宽度 |
517.5 mm |
| 高度 |
351.5 mm |
设计
| 玻璃厚度 |
1.5 mm |
| 国际保护（IP）代码 |
IP65 |
认证标准
| 认证 |
CE, TÜV-Bauart, cULus, VCCI, CU |
另外
| 显示器的颜色数量 |
16.78 million colours |
| 产品色彩 |
Black |
| 运行温度范围（T - T） |
0 - 40 °C |

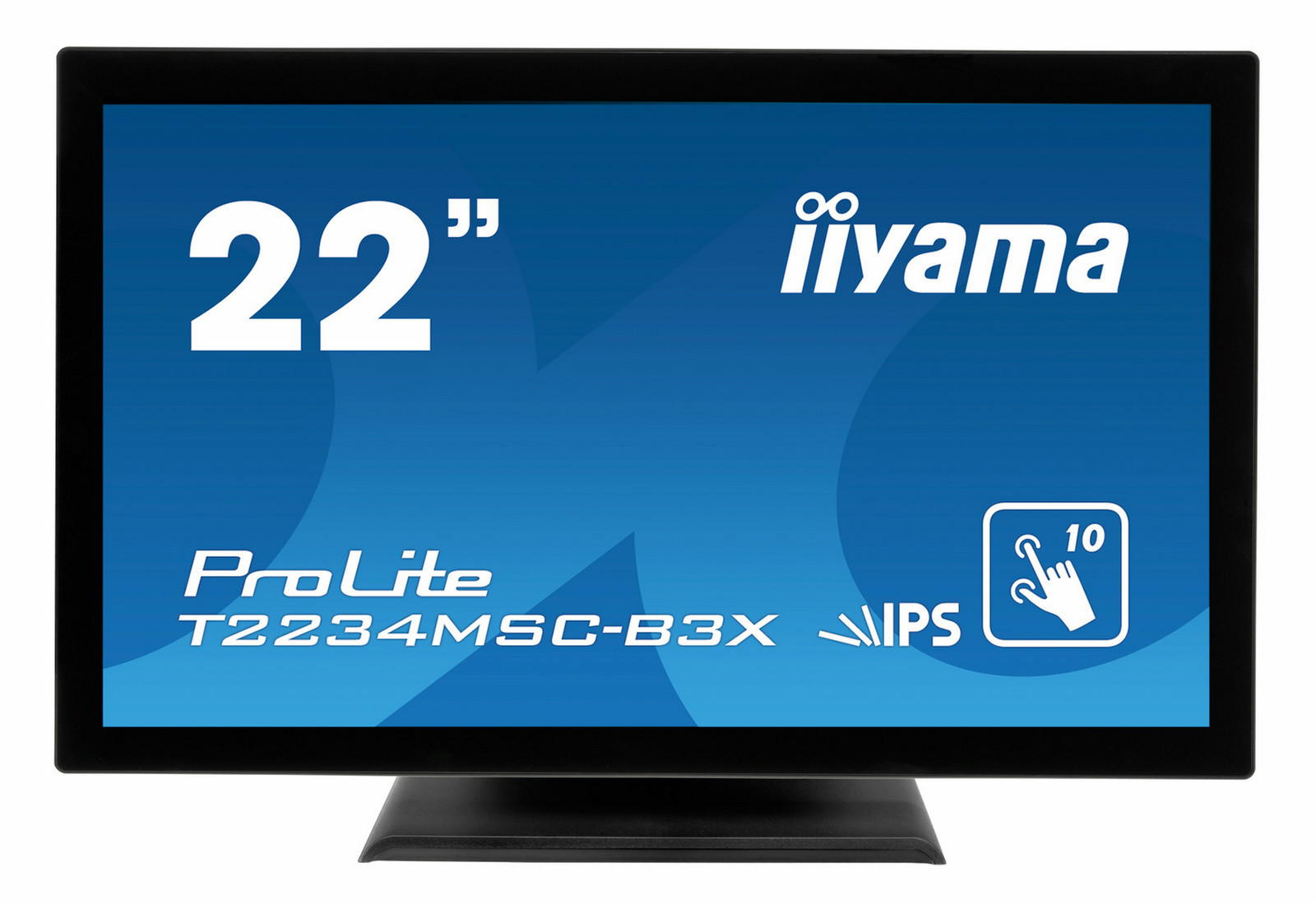

54.61 cm (21.5 ") , Multi-touch, 1920 x 1080, IPS, 250 cd/m², 8ms, RMS 2 x 3W, VGA, DVI, VESA 100x100mm, Black
22" PCAP 10pt touch screen featuring IPS technology
ProLite T2234MSC uses Projective Capacitive Touch Technology, built into an eye catching bezel with Edge to Edge glass. Featuring IPS LCD Screen technology, it offers exceptional colour performance and wide viewing angles, making it a perfect display for Interactive Digital Signage. In addition to the superb Full HD image quality, the screen is suitable for demanding environments. It comes with a rugged bezel and an IP65 rating, which means it is dust and water resistant. The ProLite T2234MSC is the ideal solution for Interactive Digital Signage, Instore Retail, POS, Kiosks and Gaming.
TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and magnetic ball.
IPS
IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.
SCRATCH RESISTANCE
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
FULL HD
With true 1920 x 1080p resolution your monitor is ready to display high definition images. This means you can accommodate more information on your screen; e.g. 60% more in comparison to a 1280 x 1024 monitor.
SPEAKERS
This LED monitor is equipped with two high quality stereo speakers.
