显示器
| 独立h/v同步 |
Y |
| 显示器尺寸 |
23.6 " |
| 垂直扫描范围 |
55 - 75 Hz |
| 长宽比 |
16:9 |
| 响应时间 |
2 ms |
| 对比度 |
1000:1 |
| 显示器分辨率 |
1920 x 1080 pixels |
| 视角，水平 |
170 ° |
| 视角，垂直 |
160 ° |
| 像素 |
0.272 x 0.272 mm |
| 显示器可视区域 HxV |
293.2 x 521.3 mm |
| 显示器亮度 |
260 cd/m² |
| Full HD |
Y |
| 显示器 |
TN+Film |
| LED背光源 |
Y |
| 显示类型 |
LED |
端口 & 界面
| 包含电缆 |
AC, Audio (3.5mm), DVI, USB, VGA |
| DVI-D接口数量 |
1 |
| USB2.0端口的数量 |
1 |
| 耳机输出端口 |
1 |
| HDMI端口数量 |
1 |
性能
| 扬声器数量 |
2 |
| 同步接触点（Windows7） |
2 |
| 即插即用 |
Y |
| RMS的额定功率 |
4 W |
| HDCP |
Y |
| OSD语言数 |
9 |
| 内置扬声器 |
Y |
| 可支持的Windows操作系统 |
Y |
能量控制
| 功耗（一般操作） |
22 W |
| 交流电（AC）输入频率 |
50/60 Hz |
| 能源之星认证 |
Y |
重量和尺寸
| 深度 |
240 mm |
| 重量 |
6200 g |
| 宽度 |
556 mm |
| 高度 |
399 mm |
人体工程学
| VESA 安装系统兼容界面 |
100 x 100 mm |
| 墙壁支架 |
Y |
| 倾角 |
-9 - 22 ° |
认证标准
| 认证 |
CE, TÜV-Bauart, GOST-R, VCCI-B, PSE |
另外
| 水平扫描范围 |
24 - 80 kHz |
| 显示器的颜色数量 |
16.78 million colours |
| 产品色彩 |
Black |

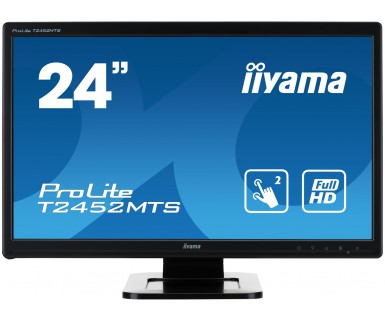

59.944 cm (23.6 ") TN LED, Full HD, 1920 x 1080, multitouch, 1000:1, 260 cd/m², 0.272 x 0.272 mm, 2 ms, VGA, DVI-D, HDMI, HDCP, Headphone out, USB
Multi-Touch
The multi-touch functionality is supported under Windows® 7 only.
OverDrive ON / OFF
When very fast graphics are displayed your monitor can sometimes get blurry. Turning on the OverDrive feature will eliminate that.
LED-BACKLIT
A typical CCFL LCD uses four backlight lamps. Using LED diodes considerably lowers the power consumption and reduces the CO2 emission into the environment making this LCD a true ECO-Friendly product.
ACR
Contrast Ratio is a measurement of the difference between the darkest black and the brightest white your monitor can display. Advanced Contrast Ratio is a feature that automatically adjusts contrast and brightness of the screen to assure perfect picture quality while watching films and playing games.
HDMI
HDMI stands for High-Definition Multimedia Interface. Much smaller and more convenient than DVI, HDMI also has the significant advantage over DVI that it supports audio as well as video signals.
FULL HD
With true 1920 x 1080p resolution your monitor is ready to display high definition images. This means you can accommodate more information on your screen; e.g. 60% more in comparison to a 1280 x 1024 monitor.
VESA
VESA mount compliance means you can easily mount your monitor to a wall.
SPEAKERS
This LED monitor is equipped with two high quality stereo speakers.
