显示器
| 显示器尺寸 |
86 " |
| 长宽比 |
16:9 |
| 触摸屏技术 |
Infrared |
| 响应时间 |
8 ms |
| 对比度 |
1200:1 |
| 视角，水平 |
178 ° |
| 视角，垂直 |
178 ° |
| 显示器亮度 |
375 cd/m² |
| 显示技术 |
LCD |
| LED背光源 |
Y |
| 显示类型 |
IPS |
端口 & 界面
| 包含电缆 |
AC, DisplayPort, HDMI, USB, VGA |
| USB2.0端口的数量 |
2 |
| S/PDIF输出接口 |
Y |
| DisplayPort 数量 |
1 |
| RS-232C |
Y |
| HDMI端口数量 |
3 |
| VGA（D-SUB）端口数量 |
1 |
人体工程学
| 支持装配位置 |
Horizontal |
| VESA 安装支架 |
Y |
| VESA 安装系统兼容界面 |
800 x 600 mm |
| 墙壁支架 |
Y |
性能
| 同步接触点的数目 |
20 |
| RMS的额定功率 |
24 W |
| HDCP |
Y |
| OSD语言数 |
8 |
| 触控技术 |
Multi-touch |
| 内置摄像头 |
N |
| 内置扬声器 |
Y |
| 屏幕显示 （OSD）语言 |
CZE, DEU, DUT, ENG, FRE, ITA, POL, RUS |
重量和尺寸
| 深度 |
100.6 mm |
| 宽度 |
1988.3 mm |
| 高度 |
1160.8 mm |
内容包装
| 手持式遥控器 |
Y |
| 配有电池 |
Y |
| 手写笔 |
Y |
| 快速入门指南 |
Y |
能量控制
| 交流电（AC）输入电压 |
100-240 V |
| 交流电（AC）输入频率 |
50/60 Hz |
认证标准
| 认证 |
CE, CB, TÜV-Bauart, EAC WEEE, ErP |
另外
| 显示器的颜色数量 |
1.073 billion colours |
| 产品色彩 |
Black |
| 显示器对角线（公制） |
217.4 cm |
| RS-232接口 |
1 |
| 以太网路(RJ-45)连接接口数量 |
1 |
218.44 cm (86 ") , UHD IPS 3840 x 2160 px, 375 cd/m², 1200:1, 8 ms, VGA, HDMI, DP, USB, S/PDIF, 2 x 12 W, VESA 800 x 600

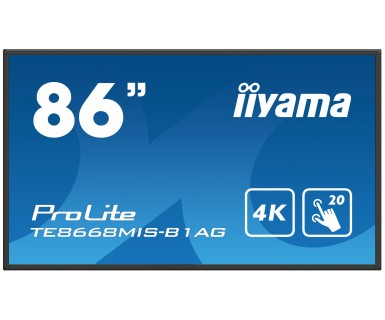

86’’ Interactive 4K LCD Touchscreen with integrated annotation software
The TE8668MIS-B1AG is a 20-point touchscreen with integrated interactive annotation software Note, allowing users to make annotations on files opened directly from a USB device or internal storage. The TE8668MIS-B1AG is a perfect solution for educational and corporate use.
The 4K UHD (3840 x 2160) resolution offers a gigantic viewable area with 4 times more information and work space than a Full HD screen. The display supports also playback of presentations, video and almost any other type of content stored on the USB device or internal memory. The high-quality commercial IPS LCD panel guarantees great viewing angles from all sides and delivers superb image performance from anywhere in a class or meeting-room. The anti-glare coating drastically reduces ambient reflection in high brightness environments without compromising the sharp clarity of the content. Unlike interactive whiteboards, there are no shadows or reductions in image performance to contend with.
