性能
| DirectX版本 |
10 |
| 最高着色模型版本 |
4.0 |
| HDCP |
Y |
内存参数
| 数据宽度 |
64 bit |
| 内存时钟速度 |
400 MHz |
端口 & 界面
| TV输出 |
Y |
| 接口类型 |
AGP 8x |
| VGA(D-SUB)端口数量 |
1 |
系统要求
| 最低内存 |
256 MB |
| 最低处理器 |
Intel Pentium 4, AMD Athlon |

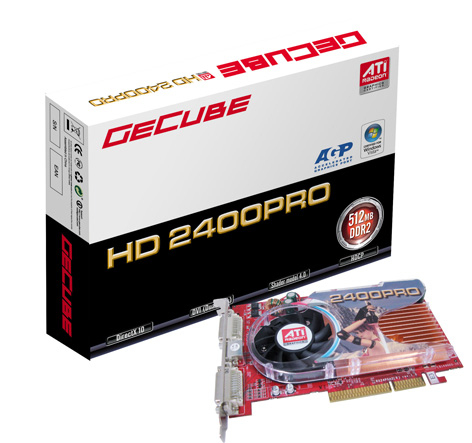

GECUBE ATI Radeon HD2400PRO 512MB DDR2, AGP 8X, DVI (Dual Link, HDCP) Edition
The ATI Radeon™ HD 2400PRO is a feature-rich upgrade from integrated graphics for an immersive experience with DirectX® 10 gaming and HD video to enjoy Blu-ray™ and HD DVD movies instantly. ATI Catalyst™ graphics configuration software is designed for quick setup and stable operation with Windows Vista™. The ideal solution for upgrade for the old existing AGP 4x/8x system.
- Certified for Windows VISTA Premium.
- Design based on ATI Radeon HD2400PRO series.
- On-board with 512MB DDR2 high speed memory.
- Unified Superscalar Shader Architecture built-in 120 stream processing units.
- Hardware processing UVD (unviversal Video Decoder)
- DVI display port supports resolutions up to 1920x1200 (single-link DVI) or 2560x1600 (dual-link DVI, HDCP).
- Windows Vista with comprehensive DirectX 10 support.
- Shader Model 4.0
