性能
补充电源连接器 |
12 |
可拆卸电源连接器 |
Y |
主要应用 |
Notebook |
电源电流类型 |
AC-to-DC |
电源类型 |
Auto/Indoor |
能量控制
输入电压 |
100-240 V |
输出电压可调 |
Y |
接受频率 |
50/60 Hz |
输出功率 |
120 W |
技术细节
USB 输出电压 |
5 V |
USB连接 |
Y |
USB 输出电流 |
2 A |

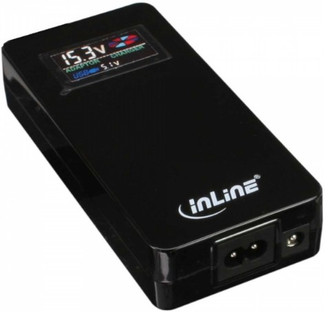

Power Supply Notebook Adapter 90W + USB 100-240V + 12 tips
Inline Power supply Notebook Adaptor with colored screen, 90W, USB, 100-240V and 12V, black incl. 12 tips. Thanks to the particular connection method an incorrect setting of the output voltage is simply impossible. Easy to use: Just connect the correct adapter tip between power supply and Notebook. The 12 included plug adapters offer the ability to connect the most popular notebook with power.
- Input: 100-240V AC (50-60Hz).
- Output Power: 90W max.
- Auto Output voltage using existing plug: 15V, 16V, 16.5V, 18.5V, 19V, 19.5V and 20V.
- USB output 5V, 2A max. 10Watt.
- Cable Length: 120cm (60cm to / from the power adapter).
- Display: Yes / Color Display.
- Dimensions: L: 133mm W: 58mm H: 31mm.
- Weight: 0.270gr.
Incl. following 12 AC plugs:
- M1 (15V) = 6.3x3.0mm (for models of TOSHIBA).
- M2 (16V) = 5.5x2.5mm (for models of IBM).
- M3 (16V) = 6.5x4.4mm (for models of SONY, FUJITSU).
- M4 (18.5V) = 4.8x1.7mm (for models of COMPAQ).
- M5 (19V) = 5.5x2.5mm (for models of Acer, Compaq, Delta, HP, FUJITSU, GATEWAY, TOSHIBA, LITEON).
- M6 (19V) = 5.0x3.0mm (for models of SAMSUNG).
- M7 (19V) = 5.5x2.1mm (for example, models of Acer, Compaq, Delta, HP, FUJITSU, GATEWAY, TOSHIBA, LITEON).
- M8 (19.5 V) = 6.5x4.4mm (eg SONY models).
- M9 (19.5 V) = 7.4x5.0mm (eg models of DELL).
- M10 (20V) = 3pin (for models of DELL).
- M11 (20V) = 7.9x5.4mm (for models of IBM, Lenovo).
- M12 (18.5 V) = 7.4x5.0mm (for models of HP, COMPAQ).
