数据传输
| MAC 地址表 |
4000 entries |
| 支持数据传输率 |
10/100/1000 Mbps |
| 最大数据传输率 |
1 Gbit/s |
端口 & 界面
| 基本交换 RJ-45 以太网端口数量 |
5 |
| DC-IN插口 |
Y |
其他功能
| 网路功能 |
Gigabit Ethernet |
| 数据传输速度 |
1000 Mbit/s |
| 电源类型 |
AC/DC |
环境条件
| 运行温度范围(T - T) |
32 - 104 °F |

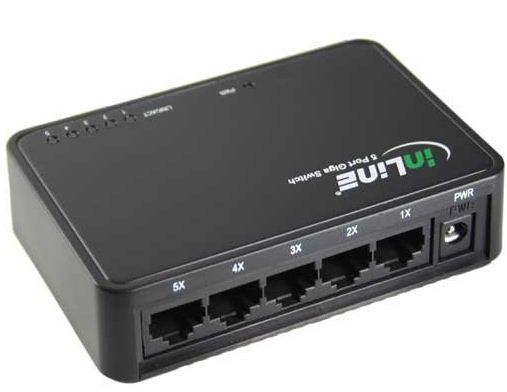

5x RJ45, Gigabit Ethernet, 10/100/1000Mbps, Black
- Five RJ45 10/100/1000Base-T Gigabit Ethernet ports
- Supports pre-802.3az Energy Efficient Ethernet ability
- Supports IEEE 802.3x Flow Control for Full Duplex
- Supports Back Pressure for Half Duplex
- Supports Full/Half Duplex in 10M/100M mode and Full Duplex in 1000M mode
- Supports Auto-Negotiation for 10/100/1000Mbps
- Supports Green Ethernet Power Saving
- Supports Auto MDI/MDI-X
- Package Contents: 5-Port Gigabit Ethernet Switch, External Power Adapter, Quick Installation Guide
- Standards : IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3x Flow Control
- Rate Standards: Ethernet: 10Mbps (Half Duplex), Ethernet: 20Mbps (Full Duplex), Fast Ethernet: 100Mbps (Half Duplex), Fast Ethernet: 200Mbps (Full Duplex), Gigabit Ethernet: 2000Mbps (Full Duplex)
- Interface: RJ-45 x 5
- MAC Address Table: 4K
- Transmission Method: Store-and-Forward
- Power Supply: External Power Adapter, 100-240V AC / 9V DC, 500mA
- Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F) ambient, Operating Humidity: 10% ~ 90% (non-condensing)
