InLine 76622B interface cards/adapter

InLine 76622B interface cards/adapter

MPN: 76622B
发送方式:
交货来源:
德国
更新价格... 📣 询问价格 Не поставляется
运输成本:
От

凡购买和价格 (Advertising *)

顶部
в наличии
* Alle Preise inkl. der jeweils geltenden gesetzlichen Mehrwertsteuer, ggfs. zzgl. Versandkosten. Alle Angaben ohne Gewähr. Preisänderungen sind in der Zwischenzeit möglich.

技术特点

顶部

端口 & 界面

并口数量 1
串口数量 2
主机接口 PCIe

其他功能

Mac兼容性 Y

性能

芯片组 MosChip MCS9901

另外

连接方式 Wired

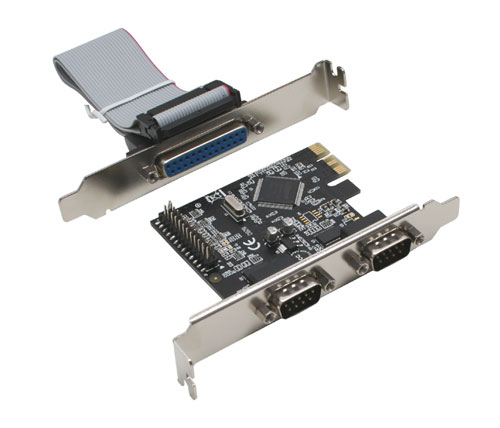

Interface card, 2x 9-pin serial + 1x 25-pin parallel, PCIe (PCI-Express) - Completely conforms to PCI Express Basic Specification (Revision 1.0a)
- Single Lane (1x) PCI-Express with data throughput up to 2.5 Gbps
- Several cards may be integrated in one PC
- Supports operation systems: Windows 2000, XP 32/64 Bit, Server 2003, Vista 32/64 Bit, Linux, Mac OS and DOS

Serial (RS-232) interface:

- compatible to industry standards 16C450 / 16C550 UART
- On-chip 256 byte deep FIFO transmission/receiver buffer for each port
- Data transfer rates up to 250 Kbps for each port (special versions may support up to 1Mbps)
- Supports hardware and software flow control
- Supports 5,6,7 and 8 Bit serial format
- Supports even, odd, none, space and mark parity
- Supports 1 or 2 stop bit operation

Parallel interface

- IEEE1284 compatible parallel port
- Supports modi: SPP, PS2, EPP & ECP
- Fast data transfer rates up to 1.5Mbps
- depends upon chipset version
- Chipset: Moschip MCS9901
