安全
| 认证方法 |
802.1x |
| 支持虚拟专用网 |
PPTP |
| 防火墙 |
Y |
联网
| 布线技术 |
10/100BASETX |
| 支持数据传输率 |
10, 100Mb/s |
技术细节
| 接口 |
ISDN BRI |
| 无线局域网连接 |
N |
| 遵守工业标准 |
802.3af |
协议
| 管理协议 |
SNMP |
| 支持网络协议 |
PPPoE, NAT, H.323-NAT, RSTP, NTP |
| 支持的协议 |
H.323 v5\nSIPv2 (RFC 3261)\nSIP over UDP, TCP, TLS, SIPS\nRTP, SRTP, RTCP\nT.38 |
能量控制
| 支持以太网（PoE） |
Y |
| 接受频率 |
50 Hz |
| 输入电流 |
0.2 A |
| 输入电压 |
100 - 240 V |

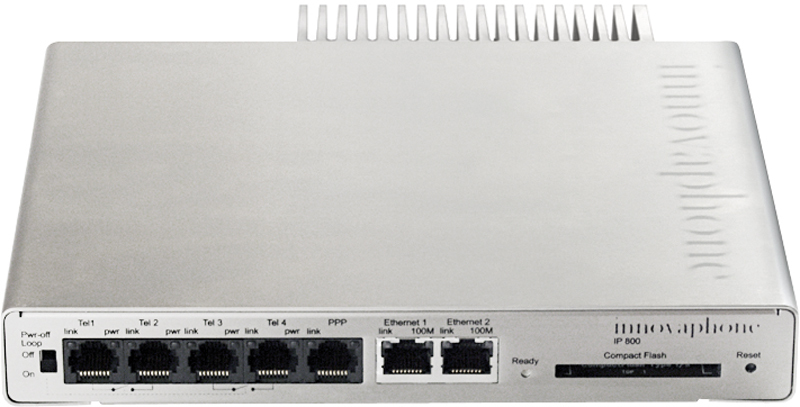

VoIP Gateway, 5 x BRI ISDN, 2 x Fast Ethernet RJ-45, CF I Card Slot, PoE
The VoIP gateway IP800 is a smaller gateway for ISDN basic rate interfaces. It is perfect for smaller PBX installations or for integrating branches as well as smaller offfices with a "local break-out".
The IP800 gateway can be used with several different configurations. All five ISDN BRI interfaces may be switched to ISDN, thus providing 10 lines simultaneously. Two of these ISDN interfaces may be configured so that they are looped through to existing trunk lines. It allows smooth migration from traditional telephony to VoIP. Hardware redundant systems are also set up in this configuration; they can replace each other immediately without interruption, thus reducing possible failure times to a minimum.
The IP800 has two separate Ethernet interfaces. They can be addressed individually and may take over routing functions between two networks. The second ethernet connection can be used as a console port. To do this, the second port is provided with a fixed IP address; a PC used for administration can be connected directly to the gateway.
