协议
| 数据链路协议 |
V.90, V.34+, V.34, V.32bis, V.32, V.23, V.22bis, V.22, V.21, Bell Norm 103/212, Fax Class 1/2 |
端口 & 界面
| DC-IN插口 |
Y |
| 调制解调器 (RJ-11)接口 |
1 |
技术细节
| 內置式 |
N |
| 数据压缩 |
MNP 5, V.42bis LAPM, MNP 10, 10 EC, V.44 |
| 纠错 |
MNP 2/3/4, V.42 |
| 命令集 |
AT |
调制解调器
| 调制解调器速度 |
56 Kbit/s |
| 接口 |
PSTN |

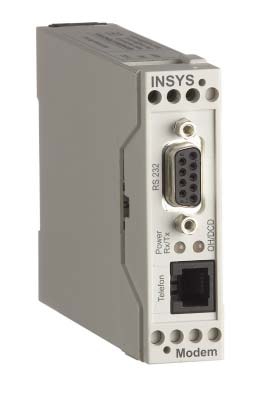

Modem 56k small 2.0 international compatible
With its robust DIN rail housing the competitive INSYS Modem 56k small EU / INT is the professional data transmission device for industry. Because of the slim design it is the space-saving perfect communication solution for every control cabinet.
The user friendly parameterization software HSComm simplifies the
configuration of the modem. The modem is addressed via a 9-pin SUB-D
jack according to the RS232 standard.
Once set up, you control your system or machine directly from your desktop. Works on site belong to the past.
Application fields:
- PLC
- data logger
- remote control of deployments and machines etc.
