内置输入/输出系统
通过内部接头的串行端口 |
Y |
USB 2.0接口 |
4 |
串列ATA连接器数量 |
2 |
性能
主板元件 |
Mini ITX |
Motherboard ARK ID |
48951 |
主板芯片组系列 |
Intel |
英特尔® 双显示功能技术 |
N |
组件应用 |
PC |
能源之星认证 |
Y |
内存参数
可支持内存时钟速度 |
800 MHz |
无错误检测和更正 |
Y |
错误更正代码 |
N |
内存通道支持 |
Single |
内存插槽类型 |
DIMM |
內存插槽数量 |
2 |
最大内部存储 |
4 GB |
背板输出端口
并口数量 |
1 |
串口数量 |
2 |
PS/2连接埠数量 |
2 |
VGA(D-SUB)端口数量 |
1 |
其他功能
图形输出 |
VGA |
补充SKU |
N |
CPU配置(最大) |
1 |
可选用的嵌入式选项 |
N |
技术细节
PCI支持 |
1 |
状态 |
End of Interactive Support |
SATA 连接口总数 |
2 |
市场细分 |
DT |
Born on date |
Q4'10 |
FireWire支持 |
0,0 |
发射日期 |
2010-10-15T00:00:00 |
产品名称 |
Intel Desktop Board D425KT |
支持的RAID配置 |
N/A |
音频通道 |
2,2 |
最大内存 |
4 GB |
处理器支持最大内存 |
4 GB |
格式要素 |
Mini-ITX |
处理器支持 ECC 功能 |
N |
USB 端口数量 |
8 |
设计
产品系列 |
Desktop board |
产品系列 |
Intel desktop board with Intel Atom |
另外
最大内部存储 |
4096 MB |
英特尔® 高保真音频技术 |
Y |
以太网连接器 |
Y |
以太网路(RJ-45)连接接口数量 |
1 |

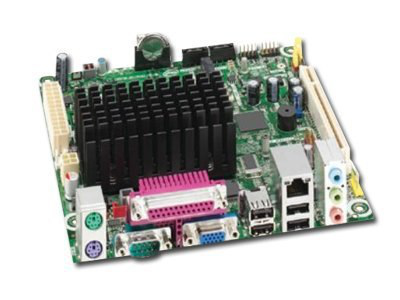

Intel Desktop Board D425KT with integrated Intel Atom processor D425 and the Intel NM10 Express Chipset enables low-power consumption and reduces the package footprint by 70 percent. The board also features 10/100 integrated LAN and USB Solid State Drive (SSD) keep-out-zone design – an ideal combination for a diskless usage model.
With breakthrough low-power silicon, the Intel Desktop Board D425KT can also be used with a passive thermal solution based on the recommended boundary conditions.
While this desktop board is small in size, it delivers a powerful Internet experience for all audiences.
