设计
主板元件 |
UCFF |
液晶显示器指示灯 |
Power |
冷却方式 |
Active |
内存参数
可支持内存时钟速度 |
1333, 1600 MHz |
内存带宽(最大) |
25.6 GB/s |
错误更正代码 |
N |
支持的内存类型 |
DDR3L-SDRAM |
内存电压 |
1.35 V |
内存通道支持 |
Dual |
内存插槽类型 |
SO-DIMM |
內存插槽数量 |
2 |
最大内部存储 |
16 GB |
性能
BIOS内存大小 |
64 MB |
基本输入输出系统类型 |
EEPROM |
返回到BIOS按钮 |
N |
PC健康监测 |
Temperature |
英特尔® 视觉 BIOS |
Y |
英特尔® 快速 BIOS 更新 |
Y |
支持的显示器数量 |
3 |
存储介质
可支持的存储驱动器数量 |
2.5 " |
支持的存储驱动器类型 |
HDD, SSD |
Motherboard
支持处理器频率(最大) |
2.6 GHz |
可支持处理器数量 |
1 |
扩展槽
Mini PCI Express插槽 |
2 |
PCI Express插槽版本 |
2.0 |
处理器
处理器加速频率 |
2.6 GHz |
处理器光刻 |
22 nm |
散热设计功耗 (TDP) |
15 W |
三级高速缓存 |
3 MB |
核心的处理器数量 |
2 |
内置处理器 |
Y |
处理器频率 |
1.3 GHz |
处理器的特殊功能
英特尔®快速存储技术 |
Y |
执行禁止位 |
Y |
闲置状态 |
Y |
热监测技术 |
Y |
英特尔®可信执行技术 |
N |
英特尔®智能连接技术 |
Y |
无冲突处理器设计 |
Y |
英特尔®快速同步视频技术 |
Y |
英特尔® 内线™ |
Y |
英特尔®64 |
Y |
可选用的嵌入式选项 |
N |
英特尔®直接输入/输出硬件辅助虚拟化技术 (Intel® VT-d) |
Y |
英特尔®智能高速缓存 |
Y |
英特尔® 防盗技术 |
Y |
英特尔®身份保护技术 |
Y |
英特尔®超线程技术 |
Y |
英特尔®Turbo Boost技术 |
2.0 |
英特尔®安全密钥 |
Y |
英特尔® 我的WiFi技术 |
Y |
英特尔®虚拟化技术 |
VT-x, VT-d |
英特尔®vPro™ 技术 |
N |
英特尔®VT-x的扩展页表(EPT) |
Y |
英特尔® FDI技术 |
N |
增强型英特尔®SpeedStep动态节能技术 |
Y |
英特尔®TSX-NIi |
Y |
英特尔® 矩阵存储技术 |
Y |
英特尔®无线显示(WiDi)技术 |
Y |
英特尔®清晰视频高清技术 |
Y |
端口 & 界面
组合耳机/麦克风接口 |
Y |
迷你HDMI端口数量 |
1 |
USB 3.0(第 1代3.1)Type-A 端口数量 |
4 |
DisplayPort版本 |
1.2 |
能量控制
电源 |
65 W |
电源转换器输出电压 |
12-19 V |
电源类型 |
External AC adapter |
另外
InTru™3D技术 |
Y |
Mini DisplayPort的数量 |
1 |
英特尔® 高保真音频技术 |
Y |
图形适配器 |
HD Graphics 5000 |
以太网连接器 |
Y |
开/关切换钮 |
Y |
英特尔®AES新指令 |
Y |
包括 AC 适配器 |
Y |
以太网路(RJ-45)连接接口数量 |
1 |

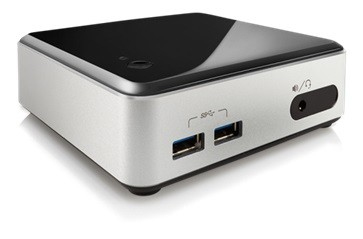

NUC Kit D54250WYKH
A revolution in ultra-compact device design, this new Intel® NUC packs more features, including support for 2.5-inch drives, into an innovative small form factor. This fully scalable, computing solution comes complete with the latest 4th generation Intel® Core™ i5 processor. The Intel NUC provides a flexible, customizable engine to drive home theater PCs, media server PCs, and intelligent computing for small spaces, or anywhere else you can imagine. The Intel NUC D54250WYKH has many useful features, including four USB 3.0 ports, an infrared sensor, a headphone and microphone jack, Mini HDMI, Mini DisplayPort video interfaces, and extra space to accommodate 2.5-inch HDD or SSD drives to support a variety of home or small office usages. It also features Visibly Smart graphics using Intel® HD Graphics 5000 to provide amazing performance and visually stunning graphics for immersive gaming, media editing with Intel® Quick Sync Video, and HD playback with Intel® Clear Video HD Technology (Intel® CVT HD).
