其他功能
| 无法纠正的位错率（UBER） |
less than 1 sector per 1e17 bits read |
| 处理器光刻 |
20 nm |
| 內置式 |
N |
性能
| SSD usage tag |
Data center |
| 内存类型 |
MLC |
| 读取速度 |
2700 MB/s |
| 写入速度 |
1080 MB/s |
| 固态磁盘驱动器的容量 |
400 GB |
| SSD ARK ID |
79625 |
| 随机写入（100％量程） |
75000 IOPS |
| 随机读取（100％量程） |
450000 IOPS |
| 英特尔®高耐用性技术（HET） |
Y |
| PCI Express接口数据线 |
x4 |
| 随机写入（4KB） |
75000 IOPS |
| 随机读取（4KB） |
450000 IOPS |
| 延时（读取） |
20 µs |
| 延时（写入） |
20 µs |
| 增强功率损耗的数据保护技术 |
Y |
| SSD温度监控 |
Y |
| 随机读取（8KB） |
275000 IOPS |
| 随机写入（8KB） |
32000 IOPS |
| 光刻技术 |
20 nm |
| 固态磁盘驱动器 接口 |
PCI Express 3.0 |
| 无线局域网连接 |
N |
技术细节
| 操作冲击 |
1000 G |
| 状态 |
Launched |
| 非运行性振动 |
3.13 G |
| 运行性震动 |
2.17 G |
| 顺序写入 |
1080 MB/s |
| 顺序读取 |
2700 MB/s |
| 市场细分 |
SRV |
| 产品简介网址 |
http://www.intel.com/content/dam/www/public/us/en/documents/product-briefs/intel-ssd-dc-family-for-pcie-brief.pdf |
| SSD 撞击（操作和不操作）冲击 |
1000G/0.5msec |
| SSD的功耗（活动） |
12W (write), 9W (read) |
| SSD的功耗（空闲） |
4W |
| SSD接口 |
PCIe NVMe 3.0 x4 |
| SSD 耐用性等级认定 |
7.3 PBW (JEDEC Workload), 10 DWPD |
| SSD重量 |
115gm |
| Born on date |
Q2'14 |
| 硬盘容量 |
400 GB |
| 发射日期 |
2014-06-03T00:00:00 |
| 产品名称 |
Intel SSD DC P3700 Series (400GB, 2.5in PCIe 3.0, 20nm, MLC) |
| 最大作业高度 |
12192 m |
设计
| SSD 外形尺寸 |
2.5" |
| 产品系列 |
Data center SSD |
| 产品系列 |
Intel DC P3700 |
| 产品代号 |
Fultondale |

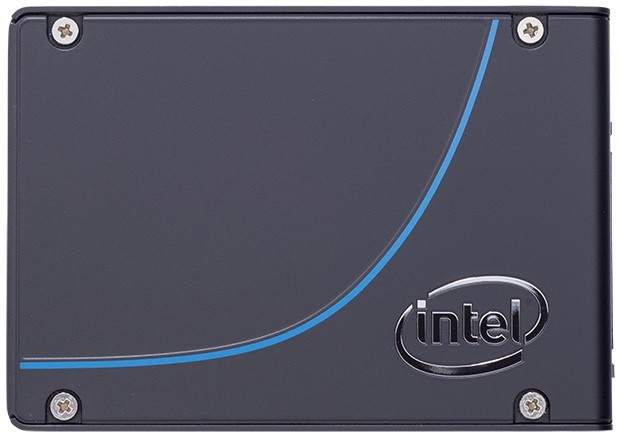

SSD DC P3700 Series (400GB, 6.35 cm (2.5 ") PCIe 3.0, 20nm, MLC)
Breakthrough performance
The Intel® Solid-State Drive Data Center Family for PCIe brings extreme data throughput directly to Intel® Xeon® processors with up to six times faster data transfer speed than 6 Gbps SAS/SATA SSDs. The performance of a single drive from the Intel SSD Data Center Family for PCIe, specifically the Intel® Solid-State Drive Data Center P3700 Series (460K IOPS), can replace the performance of 7 SATA SSDs aggregated through a host bus adapter (HBA) (approximately 500K IOPS).
Modernizes data center storage
Intel led the industry in creation of a new Non-Volatile Memory Express (NVMe) storage interface standard. NVMe overcomes SAS/SATA SSD performance limitations by optimizing hardware and software to take full advantage of NVM SSD technology.
Comprehensive solution
Intel is driving transition to NVMe SSDs by providing a comprehensive product line, enabling extensive system compatibility, delivering Intel drivers as well as supporting industry driver development, and completing numerous industry standard compliance certifications.
Proven quality and reliability
Intel SSD Data Center Family for PCIe devices are based on Intel-developed controller, firmware, and leading manufacturing process NAND flash memory. Rigorous qualification and compatibility testing ensures a highly reliable SSD. The Intel® SSD Data Center Tool provides a powerful set of management capabilities.
