技术细节
| 运行性震动 |
3.13 G |
| 非运行性振动 |
3.13 G |
| 非操作性冲击 |
1000 G |
| 状态 |
Launched |
| 操作冲击 |
1000 G |
性能
| 光刻技术 |
20 nm |
| 读取速度 |
550 MB/s |
| 写入速度 |
520 MB/s |
| SSD ARK ID |
92225 |
| 随机写入（100％量程） |
6500 IOPS |
| 随机读取（100％量程） |
82000 IOPS |
| SSD usage tag |
Data center |
| 英特尔®高耐用性技术（HET） |
Y |
| 固态磁盘驱动器 接口 |
Serial ATA III |
| 内存类型 |
MLC |
| 延时（读取） |
55 µs |
| 延时（写入） |
66 µs |
| 增强功率损耗的数据保护技术 |
Y |
| 硬件加密 |
Y |
| SSD温度监控 |
Y |
| 端到端数据保护 |
Y |
| 固态磁盘驱动器的容量 |
100 GB |
能量控制
| 功耗( idle) |
0.53 W |
| 功耗（写） |
3.3 W |
其他功能
| 无法纠正的位错率（UBER） |
1 sector per 10^17 bits read |
| 內置式 |
Y |
设计
| 产品系列 |
Data center SSD |
| 产品系列 |
Intel DC S3610 |
| 产品代号 |
Haleyville |

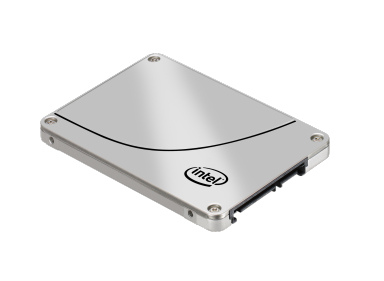

SSD DC S3610 Series (100GB, 6.35 cm (2.5 ") SATA 6Gb/s, 20nm, MLC)
<b>Enhanced Power Loss Data Protection</b>
Enhanced Power Loss Data Protection prepares the SSD for unexpected system power loss by minimizing data in transition in temporary buffers, and uses on-board power-loss protection capacitance to provide enough energy for the SSD firmware to move data from the transfer buffer and other temporary buffers to the NAND, thus protecting system and user data.
<b>High Endurance Technology (HET)</b>
High Endurance Technology (HET) in SSD's combines Intel® NAND Flash Memory silicon enhancements and SSD system management techniques to help extend the endurance of the SSD. Endurance is defined as the amount of data that can be written to an SSD during its lifetime.
<b>Temperature Monitoring and Logging</b>
Temperature Monitoring and Logging uses an internal temperature sensor to monitor and log airflow and device internal temperature. The logged results can be accessed using the SMART command.
<b>End-to-End Data Protection</b>
End-to-End Data Protection ensures integrity of stored data from the computer to the SSD and back.
